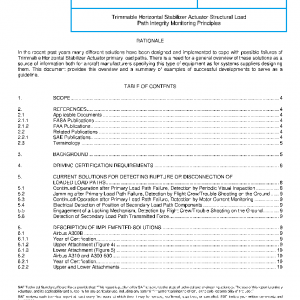

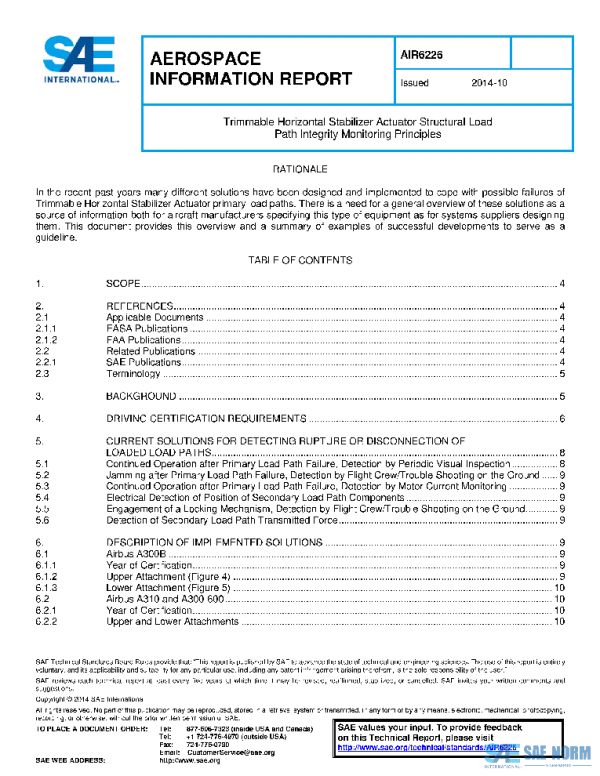

SAE AIR6226 PDF
Original price was: $123.00.$70.11Current price is: $70.11.
Trimmable Horizontal Stabilizer Actuator Structural Load Path Integrity Monitoring Principles
Description
Most of the Trimmable Horizontal Stabilizer Actuators (THSA) feature a dual structural load path, the primary load path being loaded, the secondary load path being normally unloaded, or both load paths sharing in parallel the Horizontal Stabilizer load. This document describes existing methods for detecting rupture or disconnection of loaded load paths as an overview for those specifying or designing Horizontal Stabilizer Trim Actuators in order to compare existing solutions as reference for implementation in new aircraft programs.
History
| AIR6226 | 2014-10-08 | Latest | Issued |
| ISSUING COMMITTEE | A-6B3 Electro-Mechanical Actuation Committee |
|---|---|
| DATE | 2014-10-08 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 19 |
| PUBLISHER | SAE International |
| REVISED | ISSUED |
