SAE ARP1111 PDF
Original price was: $69.00.$39.33Current price is: $39.33.

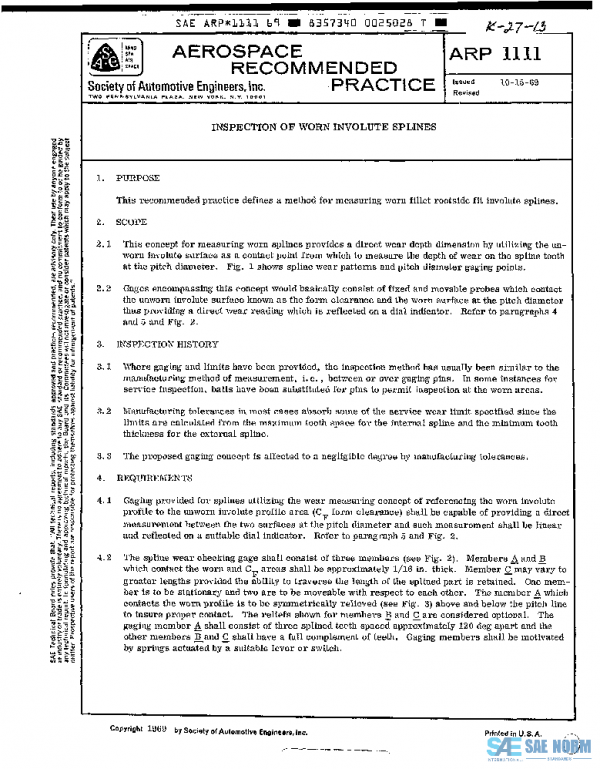

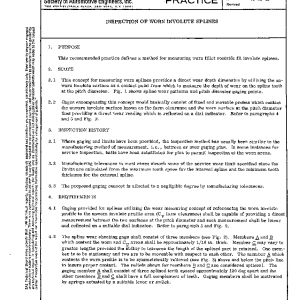

INSPECTION OF WORN INVOLUTE SPLINES
Description
This concept for measuring worn splines provides a direct wear depth dimension by utilizing the unworn involute surface as a contact point from which to measure the depth of wear on the spline tooth at the pitch diameter. Fig. 1 shows spline wear patterns and pitch diameter gaging points.
History
| ARP1111A | 2020-02-03 | Latest | Stabilized |
| ARP1111 | 1984-02-01 | Historical | Reaffirmed |
| ISSUING COMMITTEE | EG-1 Aerospace Propulsion Systems Support Equipment |
|---|---|
| DATE | 1984-02-01 |
| DOI | |
| ISCURRENT | |
| PAGE | 5 |
| PUBLISHER | SAE International |
| REVISED | ISSUED |
