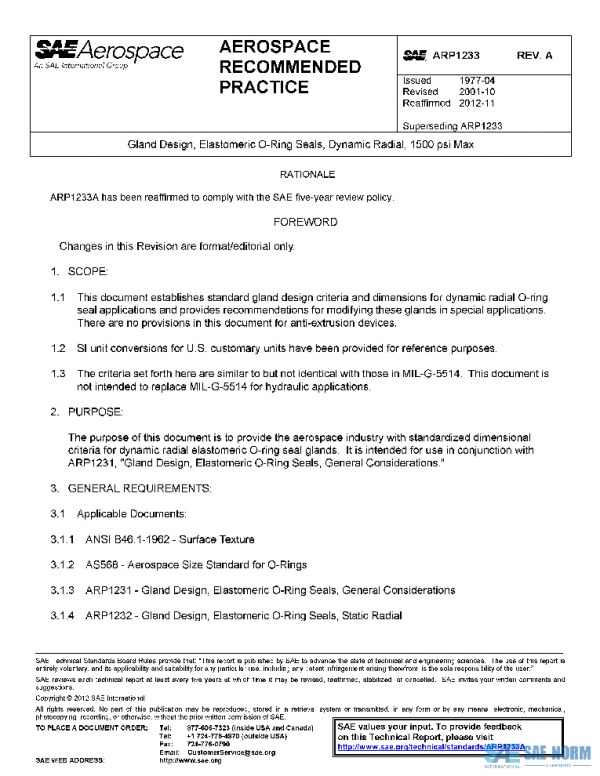

SAE ARP1233A PDF

SAE ARP1233A PDF

Original price was: $106.00.Current price is: $60.42.

Gland Design, Elastomeric O-Ring Seals, Dynamic Radial, 1500 psi Max

Category: ARP Tags: Assembling, Documentation, Elastomers, Extrusion, Forming, Seals and gaskets, Standardization, Technical review, Wear

Guaranteed Safe Checkout

Description

This document establishes standard gland design criteria and dimensions for dynamic radial O-ring seal applications and provides recommendations for modifying these glands in special applications. There are no provisions in this document for anti-extrusion devices.

History

ARP1233B	2021-04-14	Latest	Revised
ARP1233A	2012-11-01	Historical	Reaffirmed
ARP1233	1995-05-01	Historical	Reaffirmed

ISSUING COMMITTEE	A-6C2 Seals Committee
DATE	2012-11-01
DOI	https://doi.org/10.4271/ARP1233A
ISCURRENT
PAGE	13
PUBLISHER	SAE International
REVISED	REAFFIRMED
