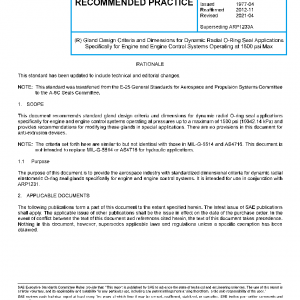

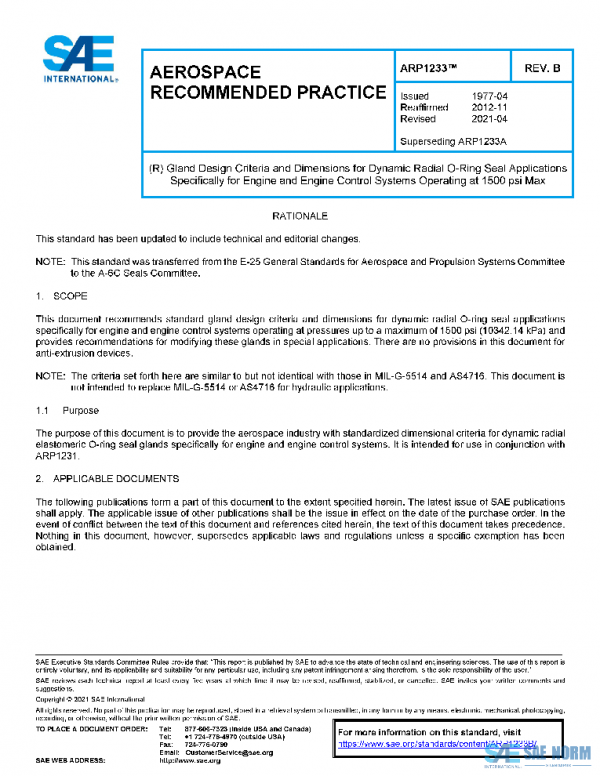

SAE ARP1233B PDF
Original price was: $125.00.$71.25Current price is: $71.25.
Gland Design Criteria and Dimensions for Dynamic Radial O-Ring Seal Applications Specifically for Engine and Engine Control Systems Operating at 1500 psi Max
Description
This document recommends standard gland design criteria and dimensions for dynamic radial O-ring seal applications specifically for engine and engine control systems operating at pressures up to a maximum of 1500 psi (10342.14 kPa) and provides recommendations for modifying these glands in special applications. There are no provisions in this document for anti-extrusion devices.
NOTE: The criteria set forth here are similar to but not identical with those in MIL-G-5514 and AS4716. This document is not intended to replace MIL-G-5514 or AS4716 for hydraulic applications.
History
| ARP1233B | 2021-04-14 | Latest | Revised |
| ARP1233A | 2012-11-01 | Historical | Reaffirmed |
| ARP1233 | 1995-05-01 | Historical | Reaffirmed |
| ISSUING COMMITTEE | A-6C2 Seals Committee |
|---|---|
| DATE | 2021-04-14 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 20 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
