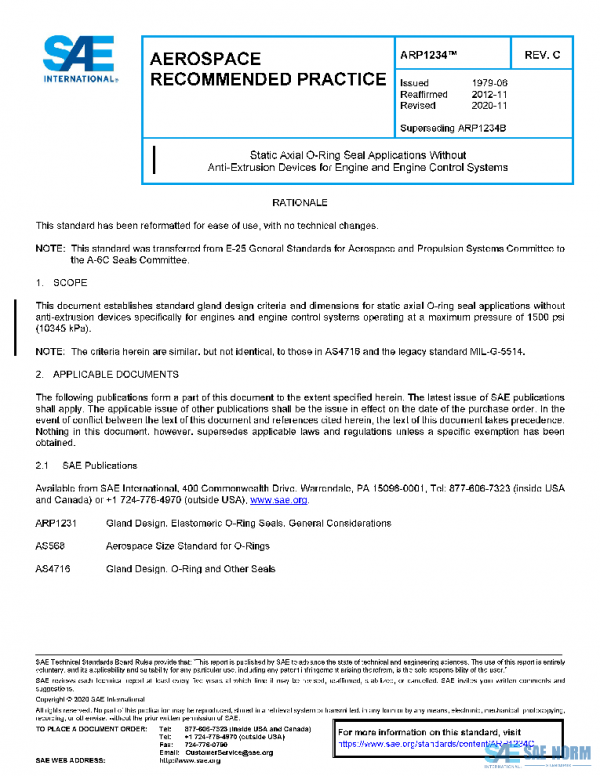

SAE ARP1234C PDF
Original price was: $135.00.$76.95Current price is: $76.95.
Static Axial O-Ring Seal Applications Without Anti-Extrusion Devices for Engine and Engine Control Systems
Description
This document establishes standard gland design criteria and dimensions for static axial O-ring seal applications without anti-extrusion devices specifically for engines and engine control systems operating at a maximum pressure of 1500 psi (10345 kPa).
NOTE: The criteria herein are similar, but not identical, to those in AS4716 and the legacy standard MIL-G-5514.
History
| ARP1234F | 2025-05-27 | Latest | Revised |
| ARP1234E | 2024-04-01 | Historical | Revised |
| ARP1234D | 2021-08-26 | Historical | Revised |
| ARP1234C | 2020-11-09 | Historical | Revised |
| ARP1234B | 2012-11-01 | Historical | Reaffirmed |
| ARP1234A | 1995-05-01 | Historical | Reaffirmed |
| ISSUING COMMITTEE | A-6C2 Seals Committee |
|---|---|
| DATE | 2020-11-09 |
| DOI | |
| ISCURRENT | |
| PAGE | 25 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
