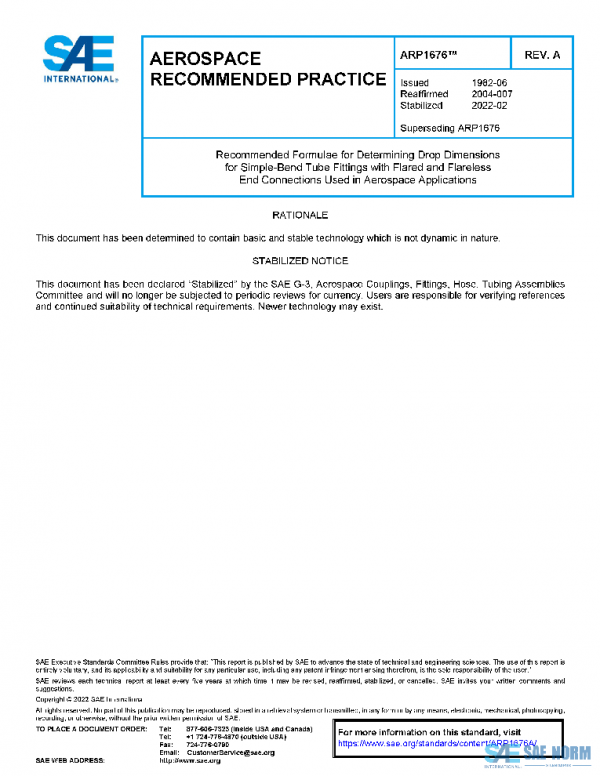

SAE ARP1676A PDF
Original price was: $62.00.$35.34Current price is: $35.34.
Recommended Formulae for Determining Drop Dimensions for Simple-Bend Tube Fittings with Flared and Flareless End Connections Used in Aerospace Applications(STABILIZED Feb 2022)
Description
These formulae shall be used to determine drop dimensions for simple bend tube fittings utilizing flare and flareless end connection designs from 0° to 90° used in aircraft and aerospace applications. Individual design standards shall specify parameters, such as centerline bend radius (R), straight tangent length to accommodate bending equipment (X1 and X2), and nut to be used.
History
| ARP1676A | 2022-02-14 | Latest | Stabilized |
| ARP1676 | 2013-01-02 | Historical | Reaffirmed |
| ISSUING COMMITTEE | G-3, Aerospace Couplings, Fittings, Hose, Tubing Assemblies |
|---|---|
| DATE | 2022-02-14 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 4 |
| PUBLISHER | SAE International |
| REVISED | STABILIZED |
