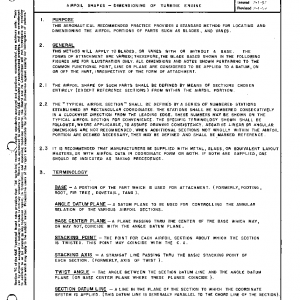

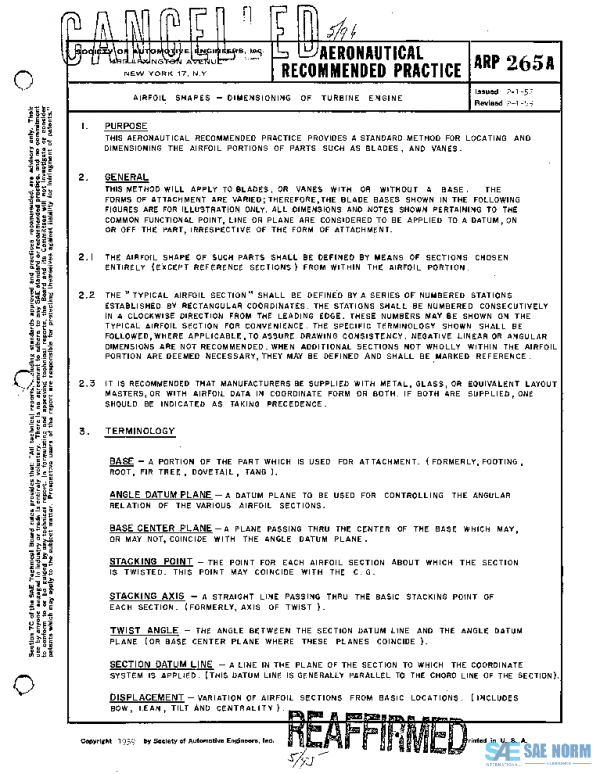

SAE ARP265A PDF
Original price was: $75.00.$42.75Current price is: $42.75.
Airfoil Shapes – Dimensioning of Turbine Engine(Cancelled Feb 1959)
Description
This Aeronautical Recommended Practice provides a standard method for locating and dimensioning the airfoil portions of parts such as blades, and vanes. This method will apply to blades, or vanes with or without a base. The forms of attachment are varied; therefore, the blade bases shown in the following figures are for illustration only. All dimensions and notes shown pertaining to the common functional point, line or plane are considered to be applied to a datum, on or off the part, irrespective of the form of attachment.
History
| ARP265A | 1996-05-01 | Latest | Canceled |
| ARP265 | 1996-05-01 | Historical | Revised |
| ISSUING COMMITTEE | E-25 General Standards for Aerospace and Propulsion Systems |
|---|---|
| DATE | 1996-05-01 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 6 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
