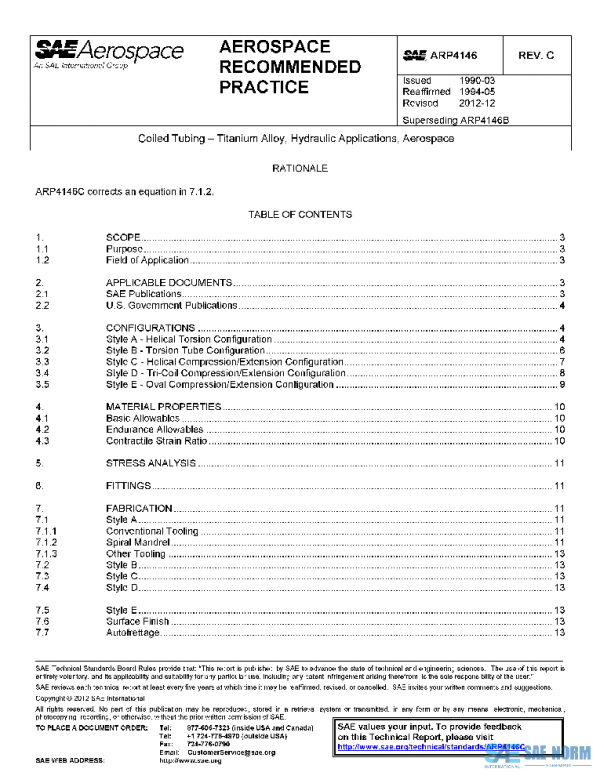

SAE ARP4146C PDF
Original price was: $155.00.$88.35Current price is: $88.35.
Coiled Tubing – Titanium Alloy, Hydraulic Applications, Aerospace
Description
This SAE Aerospace Recommended Practice (ARP) addresses the design, installation, and testing of coiled tube assemblies using Ti-3Al-2.5V cold worked, stress relieved (CWSR) tubing per AMS4945. It specifically details five different configurations of coiled tubing.
The configurations detailed herein should be compatible with pressure levels up to 8000 psi (55.2 MPa) upon completion of analysis for the actual stress and life requirement of the intended application.
Formal qualification tests are recommended to verify satisfactory installation, clamping, and the life of each unique design.
NOTE: For information on design of coiled tube assemblies using CRES steel tubing, see ARP584.
History
| ARP4146D | 2018-06-21 | Latest | Stabilized |
| ARP4146C | 2012-12-12 | Historical | Revised |
| ARP4146B | 2011-11-28 | Historical | Revised |
| ARP4146A | 2000-01-01 | Historical | Revised |
| ARP4146 | 1994-05-01 | Historical | Reaffirmed |
| ISSUING COMMITTEE | A-6C5 Components Committee |
|---|---|
| DATE | 2012-12-12 |
| DOI | |
| ISCURRENT | |
| PAGE | 43 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
