SAE ARP674A PDF
Original price was: $91.00.$51.87Current price is: $51.87.

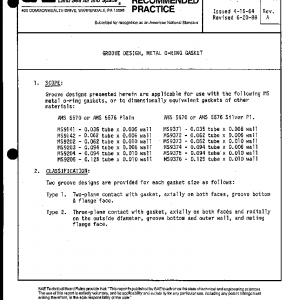

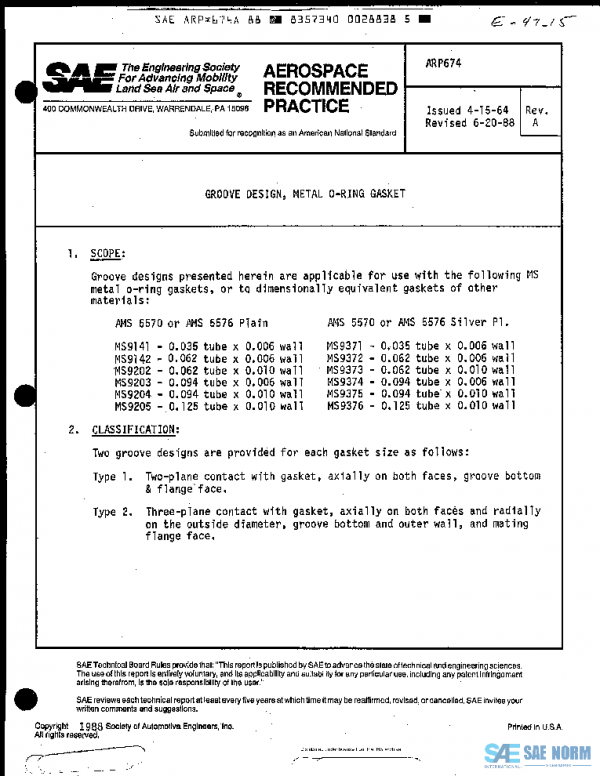

GROOVE DESIGN, METAL O-RING GASKET
Description
Groove designs presented herein are applicable for use with the following MS metal o-ring gaskets, or to dimensionally equivalent gaskets of other materials:
AMS 5570 or AMS 5576 Plain
AMS 5570 or AMS 5576 Silver P1.
MS9141 – 0.035 tube x 0.006 wall
MS9371 – 0.035 tube x 0.006 wall
MS9142 – 0.062 tube x 0.006 wall
MS9372 – 0.062 tube x 0.006 wall
MS9202 – 0.062 tube x 0.010 wall
MS9373 – 0.062 tube x 0.010 wall
MS9203 – 0.094 tube x 0.006 wall
MS9374 – 0.094 tube x 0.006 wall
MS9204 – 0.094 tube x 0.010 wall
MS9375 – 0.094 tube x 0.010 wall
MS9205 – 0.125 tube x 0.010 wall
MS9376 – 0.125 tube x 0.010 wall
Revision History
Related Info
ARP674D
2018-03-30
Latest
Stabilized
ARP674C
2012-10-23
Historical
Reaffirmed
ARP674B
1998-01-01
Historical
Revised
ARP674A
1988-06-20
Historical
Revised
ARP674
1964-04-01
Historical
Issued
DOI: https://doi.org/10.4271/ARP674A
Issuing Committee:
E-25 General Standards for Aerospace and Propulsion Systems
Publisher:
SAE International
Pages: 9
Related Topics:
Seals and gaskets
Tensile strength
Pressure
Also known as: SAE ARP 674
History
| ARP674D | 2018-03-30 | Latest | Stabilized |
| ARP674C | 2012-10-23 | Historical | Reaffirmed |
| ARP674B | 1998-01-01 | Historical | Revised |
| ARP674A | 1988-06-20 | Historical | Revised |
| ARP674 | 1964-04-01 | Historical | Issued |
| ISSUING COMMITTEE | E-25 General Standards for Aerospace and Propulsion Systems |
|---|---|
| DATE | 1988-06-20 |
| DOI | |
| ISCURRENT | |
| PAGE | 9 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
