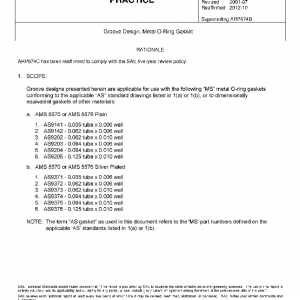

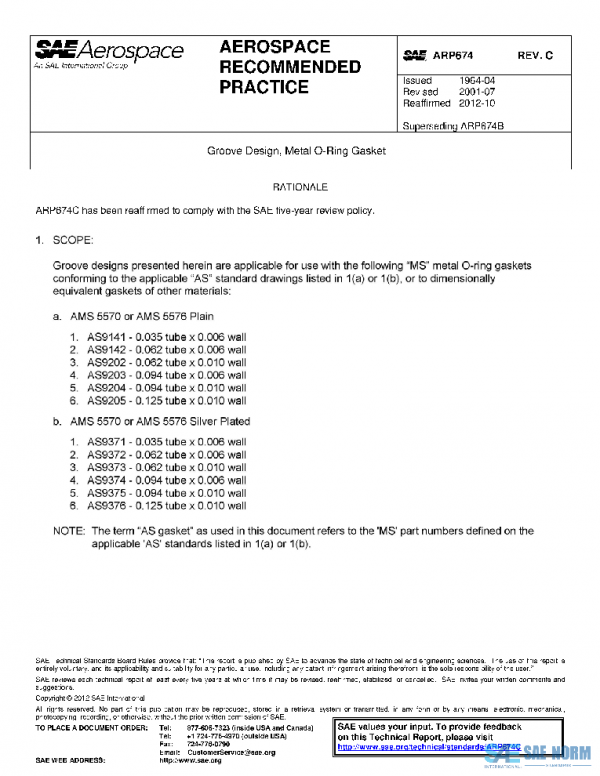

SAE ARP674C PDF

Description

Groove designs presented herein are applicable for use with the following “MS” metal O-ring gaskets conforming to the applicable “AS” standard drawings listed in 1(a) or 1(b), or to dimensionally equivalent gaskets of other materials:

a
AMS 5570 or AMS 5576 Plain

1
AS9141 – 0.035 tube × 0.006 wall

2
AS9142 – 0.062 tube × 0.006 wall

3
AS9202 – 0.062 tube × 0.010 wall

4
AS9203 – 0.094 tube × 0.006 wall

5
AS9204 – 0.094 tube × 0.010 wall

6
AS9205 – 0.125 tube × 0.010 wall

b
AMS 5570 or AMS 5576 Silver Plated

1
AS9371 – 0.035 tube × 0.006 wall

2
AS9372 – 0.062 tube × 0.006 wall

3
AS9373 – 0.062 tube × 0.010 wall

4
AS9374 – 0.094 tube × 0.006 wall

5
AS9375 – 0.094 tube × 0.010 wall

6
AS9376 – 0.125 tube × 0.010 wall
NOTE: The term “AS gasket” as used in this document refers to the ‘MS’ part numbers defined on the applicable ‘AS’ standards listed in 1(a) or 1(b).

History

ARP674D	2018-03-30	Latest	Stabilized
ARP674C	2012-10-23	Historical	Reaffirmed
ARP674B	1998-01-01	Historical	Revised
ARP674A	1988-06-20	Historical	Revised
ARP674	1964-04-01	Historical	Issued
