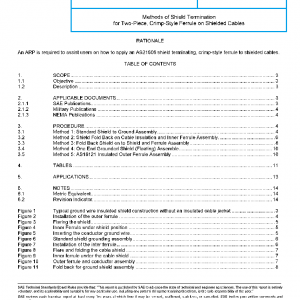

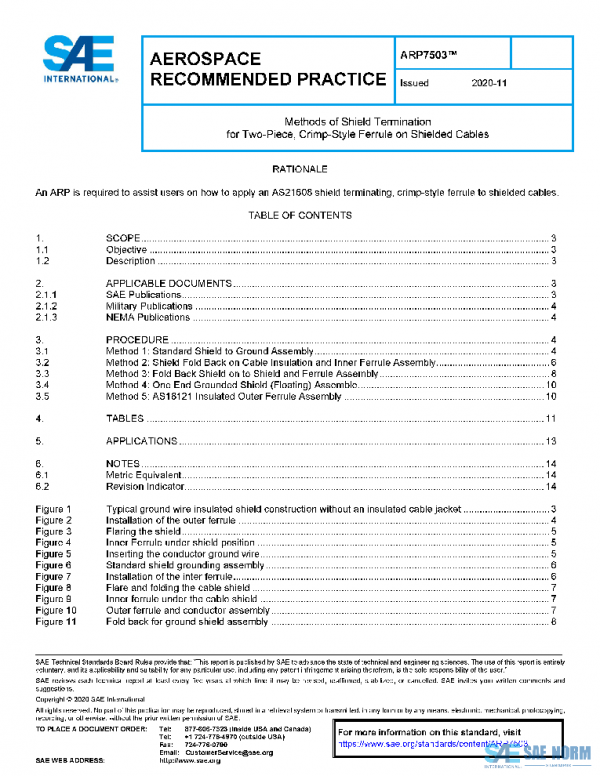

SAE ARP7503 PDF
Original price was: $110.00.$62.70Current price is: $62.70.
Methods of Shield Termination for Two-Piece, Crimp-Style Ferrule on Shielded Cables
Description
AS21608 shield terminating, crimp-style ferrule applications on shielded cables require various piece parts in multiple combinations to ground the shield of non-environmental cables. This ARP provides the recommended methods to ensure the shield ground wire is terminated correctly and the shield is protected. Refer to AS83519 for shield grounding when eviornmental resistance is required.
History
| ARP7503 | 2020-11-03 | Latest | Issued |
| ISSUING COMMITTEE | AE-8C2 Terminating Devices and Tooling Committee |
|---|---|
| DATE | 2020-11-03 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 14 |
| PUBLISHER | SAE International |
| REVISED | ISSUED |
