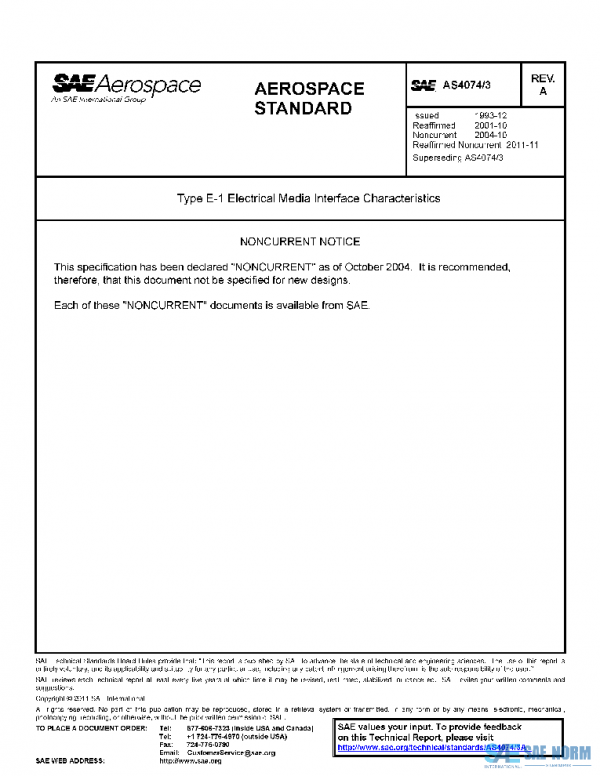

SAE AS4074/3A PDF
Original price was: $69.00.$39.33Current price is: $39.33.
Type E-1 Electrical Media Interface Characteristics(NONCURRENT Oct 2004)
Description
This slash sheet specifies the operational parameters and characteristics of a particular implementation of the SAE Linear, Token Passing Bus (LTPB) Interface Unit.
This slash sheet defines the following:
a
The physical media interface: This slash sheet specifies the characteristics of the electrical interface to the physical bus media.
b
The minimum and maximum timing requirements for operation of this implementation of the LTPB.
c
The data coding used to encode and decode the data for transmission.
d
The default values to be loaded into the timers of the LTPB interface at power-up prior to intervention by the host processor.
History
| AS4074/3B | 2016-10-21 | Latest | Stabilized |
| AS4074/3A | 2011-11-15 | Historical | Reaffirmed |
| AS4074/3 | 2001-10-01 | Historical | Reaffirmed |
| ISSUING COMMITTEE | AS-1A Avionic Networks Committee |
|---|---|
| DATE | 2011-11-15 |
| DOI | |
| PAGE | 5 |
| PUBLISHER | SAE International |
| REVISED | REAF. NONC. |
