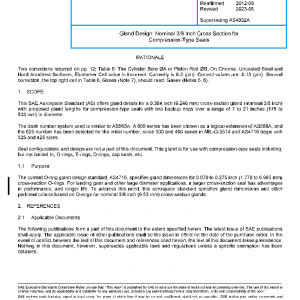

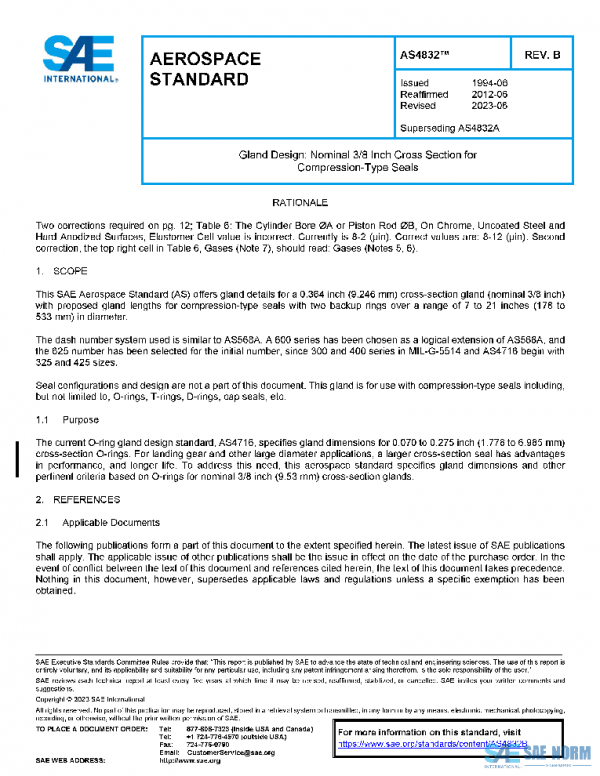

SAE AS4832B PDF
Original price was: $110.00.$62.70Current price is: $62.70.
Gland Design: Nominal 3/8 Inch Cross Section for Compression-Type Seals
Description
This SAE Aerospace Standard (AS) offers gland details for a 0.364 inch (9.246 mm) cross-section gland (nominal 3/8 inch) with proposed gland lengths for compression-type seals with two backup rings over a range of 7 to 21 inches (178 to 533 mm) in diameter.
The dash number system used is similar to AS568A. A 600 series has been chosen as a logical extension of AS568A, and the 625 number has been selected for the initial number, since 300 and 400 series in MIL-G-5514 and AS4716 begin with 325 and 425 sizes.
Seal configurations and design are not a part of this document. This gland is for use with compression-type seals including, but not limited to, O-rings, T-rings, D-rings, cap seals, etc.
History
| AS4832B | 2023-06-12 | Latest | Revised |
| AS4832A | 2019-06-17 | Historical | Revised |
| AS4832 | 2012-06-29 | Historical | Reaffirmed |
| ISSUING COMMITTEE | A-5B Gears, Struts and Couplings Committee |
|---|---|
| DATE | 2023-06-12 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 14 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
