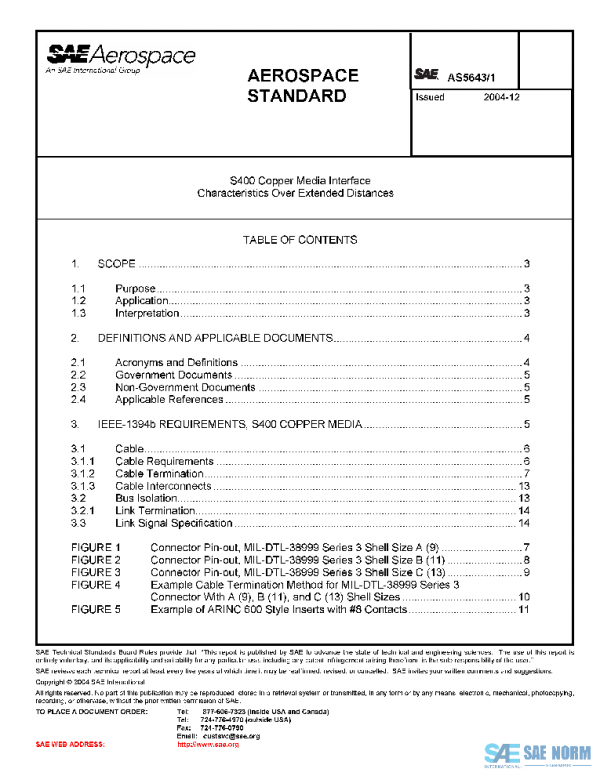

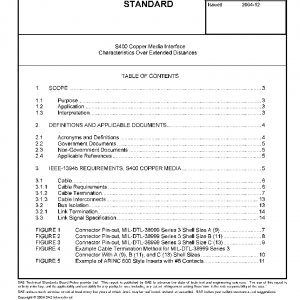

SAE AS5643/1 PDF
Original price was: $115.00.$65.55Current price is: $65.55.
S400 Copper Media Interface Characteristics Over Extended Distances
Description
This SAE Aerospace Standard (AS) establishes guidelines for the use of IEEE-1394b as a data bus network in military and aerospace vehicles. It encompasses the data bus cable and its interface electronics for a system utilizing S400 over copper medium over extended lengths. This document contains extensions/restrictions to “off-the-shelf” IEEE-1394 standards, and assumes that the reader already has a working knowledge of IEEE-1394.
This document does not identify specific environmental requirements (electromagnetic compatibility, temperature, vibration, etc.); such requirements will be vehicle-specific and even LRU-specific. However, the hardware requirements and examples contained herein do address many of the environmental conditions that military and aerospace vehicles may experience. One should reference the appropriate sections of MIL-STD-461E for their particular LRU, and utilize handbooks such as MIL-HDBK-454A and MIL-HDBK-5400 for guidance.
This document is referred to as a “slash sheet” and accompanies the SAE Sxxxx base standard.
History
| AS5643/1A | 2019-07-09 | Latest | Revised |
| AS5643/1 | 2004-12-30 | Historical | Issued |
| ISSUING COMMITTEE | AS-1A Avionic Networks Committee |
|---|---|
| DATE | 2004-12-30 |
| DOI | |
| PAGE | 16 |
| PUBLISHER | SAE International |
| REVISED | ISSUED |
