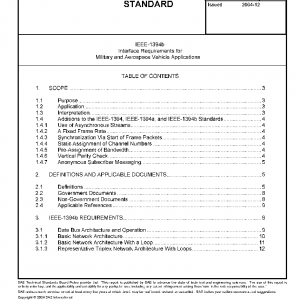

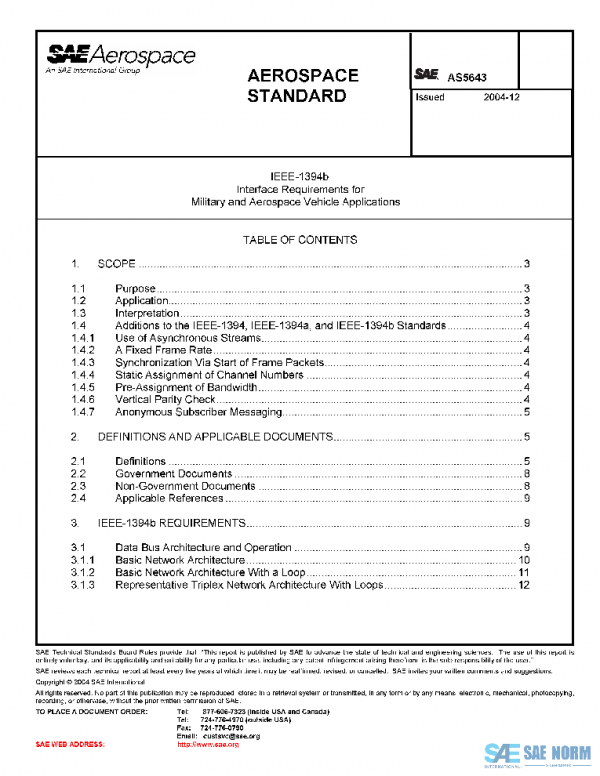

SAE AS5643 PDF

Description

This SAE Aerospace Standard (AS) establishes the requirements for the use of IEEE-1394b as a data bus network in military and aerospace vehicles. It defines the concept of operations and information flow on the network. As discussed in 1.4, this specification contains extensions/restrictions to “off-the-shelf” IEEE-1394 standards, and assumes that the reader already has a working knowledge of IEEE-1394.
This document is referred to as the “base” specification, containing the generic requirements that specify data bus characteristics, data formats and node operation. It is important to note that this specification is not stand-alone – several requirements provide only example implementations and delegate the actual implementation to be specified by the network architect/integrator for a particular vehicle application. This information is typically contained in a “network profile” slash sheet that is subservient to this base specification. In a similar manner, the electrical characteristics of the bus media, as well as connector information is contained in a “physical layer” slash sheet, that also may be unique to a particular vehicle application.
In summary, full understanding of this specification requires knowledge of IEEE-1394b standards and access to the physical layer slash sheets and the slash sheets and handbook for the target application.
