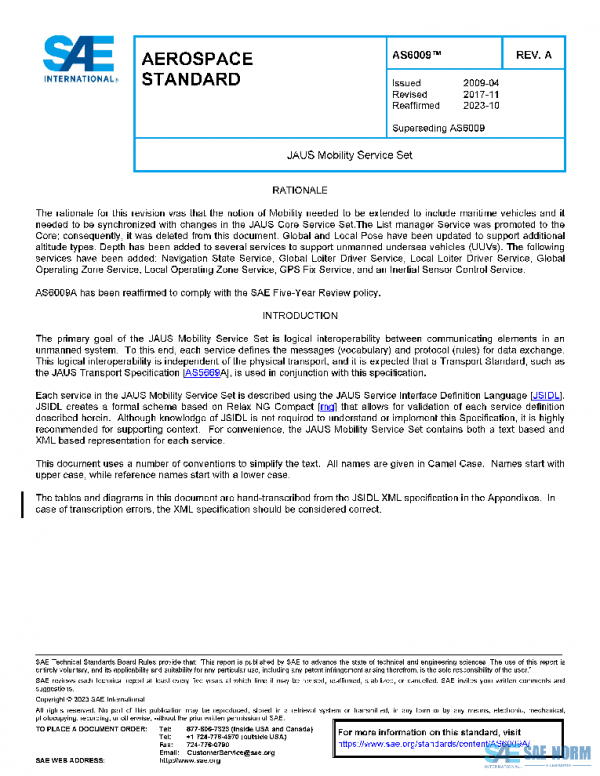

SAE AS6009A PDF

Description

This document defines a set of standard application layer interfaces called JAUS Mobility Services. JAUS Services provide the means for software entities in an unmanned system or system of unmanned systems to communicate and coordinate their activities. The Mobility Services represent the vehicle platform-independent capabilities commonly found across all domains and types of unmanned systems (referred to as UxVs). At present, over 15 services are defined in this document many of which were updated in this revision to support Unmanned Underwater Vehicles (UUVs). Some examples include:

Pose Sensors: Determine the instantaneous position and orientation of a platform in global or local coordinates

Velocity State Sensor: Determines the instantaneous velocity of a platform

Acceleration State Sensor: Determines the instantaneous acceleration of a platform

Primitive Driver: Performs basic mobility for a platform based on force/torque efforts

Vector Drivers: Perform closed loop mobility for straight line travel

Velocity State Driver: Similar to vector drivers, but with additional degrees of freedom

Waypoint Drivers: Perform closed loop mobility to a location specified

Waypoint List Drivers: Performs closed loop mobility using a series of locations

Path Segment Drivers: Performs closed loop mobility along a specified path

Navigation State: Provides a consolidated and synchronized report of the position, orientation, velocity and acceleration of the vehicle

Operating Zone Services: Enables setting the vehicle operating areas and keep-out areas in global or local coordinates

Loiter Drivers: Performs closed-loop traversal of a definable loiter pattern centered on either a global or local coordinate

GPS Fix: Monitors the status of the GPS signal and controls the acquisition of a GPS position fix

Inertial Sensor Control: Controls and reports the operational state of the vehicle’s inertial sensor unit
Each service is described by a JAUS Service Definition (JSD) which specifies the message set and protocol required for compliance. Each JSD is fully compliant with the JAUS Service Interface Definition Language [JSIDL].

History

AS6009A	2023-10-06	Latest	Reaffirmed
AS6009	2009-04-15	Historical	Issued
