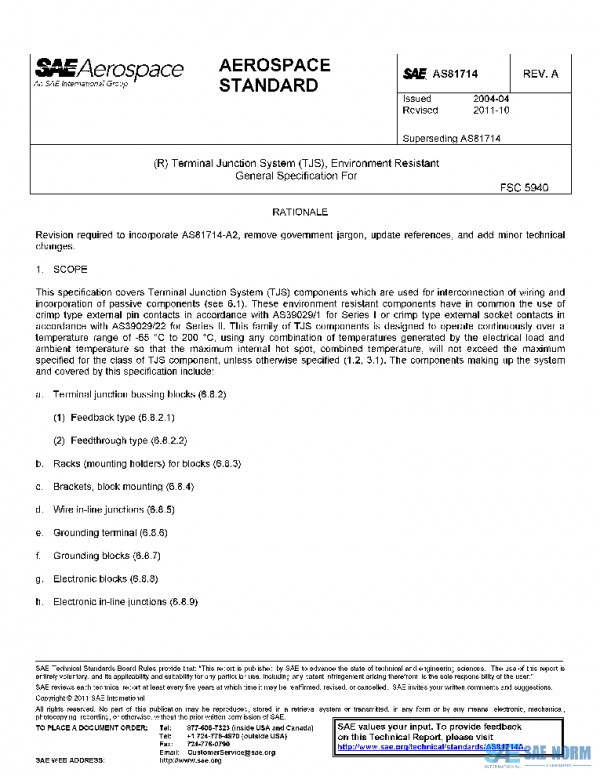

SAE AS81714A PDF

Description

This specification covers Terminal Junction System (TJS) components which are used for interconnection of wiring and incorporation of passive components (see 6.1). These environment resistant components have in common the use of crimp type external pin contacts in accordance with AS39029/1 for Series I or crimp type external socket contacts in accordance with AS39029/22 for Series II. This family of TJS components is designed to operate continuously over a temperature range of -65 °C to 200 °C, using any combination of temperatures generated by the electrical load and ambient temperature so that the maximum internal hot spot, combined temperature, will not exceed the maximum specified for the class of TJS component, unless otherwise specified (1.2, 3.1). The components making up the system and covered by this specification include:

a
Terminal junction bussing blocks (6.8.2)

(1)
Feedback type (6.8.2.1)

(2)
Feedthrough type (6.8.2.2)

b
Racks (mounting holders) for blocks (6.8.3)

c
Brackets, block mounting (6.8.4)

d
Wire in-line junctions (6.8.5)

e
Grounding terminal (6.8.6)

f
Grounding blocks (6.8.7)

g
Electronic blocks (6.8.8)

h
Electronic in-line junctions (6.8.9)

History

AS81714_A2	2007-08-23	Historical	Amended
AS81714_A1	2004-06-02	Historical	Amended
AS81714D	2021-11-23	Latest	Revised
AS81714C	2020-01-31	Historical	Revised
AS81714B	2014-09-11	Historical	Revised
AS81714A	2011-10-20	Historical	Revised
AS81714	2004-04-08	Historical	Issued
