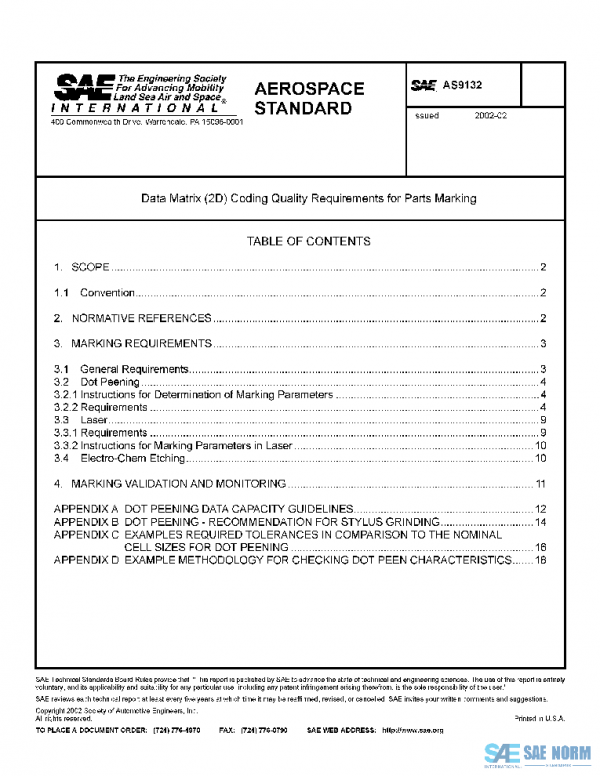

SAE AS9132 PDF
Original price was: $129.00.$73.53Current price is: $73.53.
Data Matrix (2D) Coding Quality Requirements for Parts Marking
Description
This Standard defines uniform Quality and Technical requirements relative to metallic parts marking performed in using “Data Matrix symbology” (2D) coding used within the aerospace industry. The ISO 16022 specifies general requirements (data characters encodation, error correction rules, decoding algorithm, etc.). In addition to this specification, part Identification with such coding is subject to the following requirements to ensure electronic reading (scanning) ability of the symbol.
The marking processes covered by this standard are as follows:
Dot Peening
Laser Marking
Electro-Chem Etching
Further marking processes will be included if required.
Unless specified otherwise in the contractual business relationship, the company responsible for the design of the part shall determine the location of the Data Matrix Marking. Symbol position should allow illumination from all sides for readability.
This standard does not specify information to be encoded, which are requested by customers, in conjunction with the ATA Spec 2000, chapter 9.
History
| AS9132B | 2022-05-02 | Latest | Reaffirmed |
| AS9132A | 2005-02-16 | Historical | Revised |
| AS9132 | 2002-02-26 | Historical | Issued |
| ISSUING COMMITTEE | G-14 Americas Aerospace Quality Standards Committee (AAQSC) |
|---|---|
| DATE | 2002-02-26 |
| DOI | |
| ISCURRENT | |
| PAGE | 22 |
| PUBLISHER | SAE International |
| REVISED | ISSUED |
