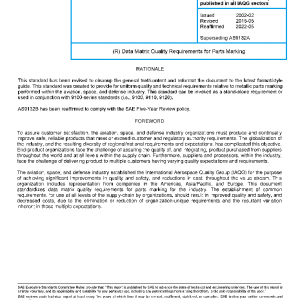

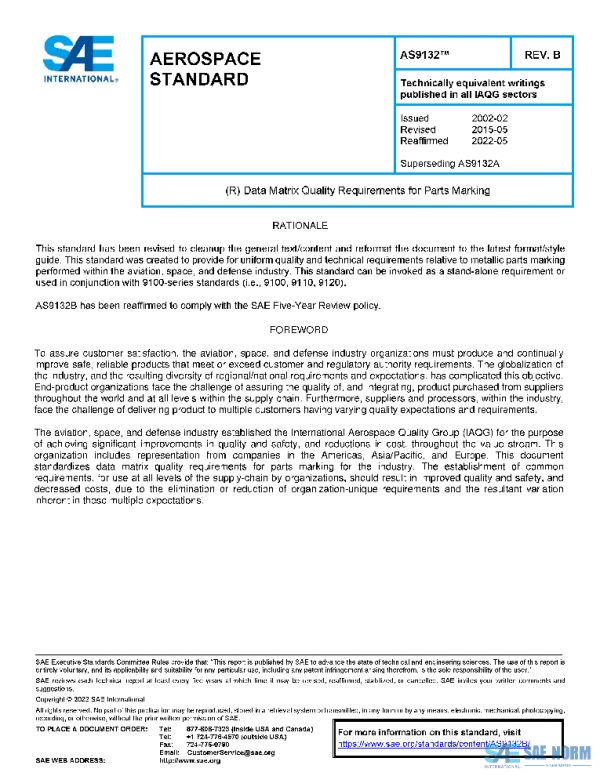

SAE AS9132B PDF
Original price was: $138.00.$78.66Current price is: $78.66.
Data Matrix Quality Requirements for Parts Marking
Description
This standard defines uniform quality and technical requirements relative to metallic parts marking performed using “data matrix symbology” within the aviation, space, and defense industry. ISO/IEC 16022 specifies general requirements (e.g., data character encodation, error correction rules, decoding algorithm). In addition to ISO/IEC 16022 specification, part identification with such symbology is subject to the requirements in this standard to ensure electronic reading of the symbol.
The marking processes covered by this standard are as follows:
Dot Peening
Laser
Electro-Chemical Etching
Further marking processes will be included, if required.
Unless specified otherwise in the contractual business relationship, the company responsible for the design of the part shall determine the location of the data matrix marking. Symbol position should allow optimum illumination from all sides for readability.
This standard does not specify information to be encoded.
History
| AS9132B | 2022-05-02 | Latest | Reaffirmed |
| AS9132A | 2005-02-16 | Historical | Revised |
| AS9132 | 2002-02-26 | Historical | Issued |
| ISSUING COMMITTEE | G-14 Americas Aerospace Quality Standards Committee (AAQSC) |
|---|---|
| DATE | 2022-05-02 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 27 |
| PUBLISHER | SAE International |
| REVISED | REAFFIRMED |
