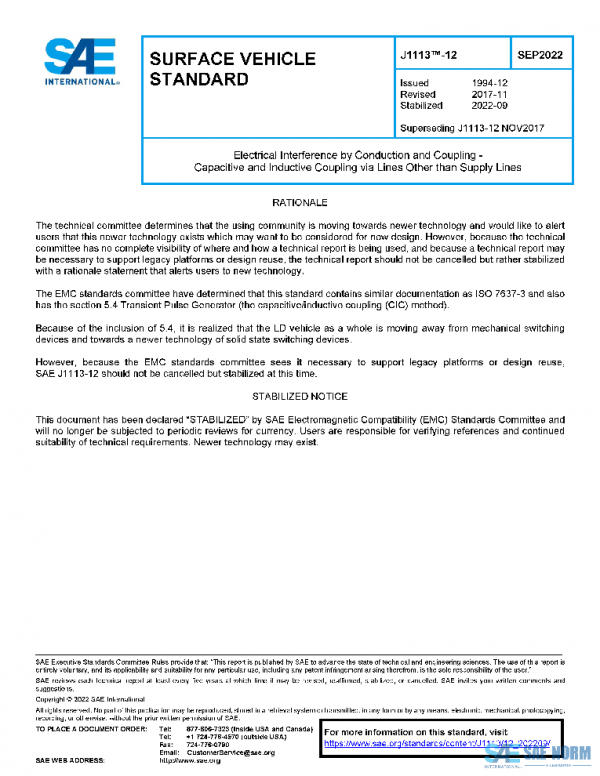

SAE J1113/12_202209 PDF
Original price was: $155.00.$88.35Current price is: $88.35.
Electrical Interference by Conduction and Coupling – Capacitive and Inductive Coupling via Lines Other than Supply Lines(STABILIZED Sep 2022)
Description
This SAE Standard establishes test methods for the evaluation of devices and equipment in vehicles against transient transmission by coupling via lines other than the power supply lines. The test methods demonstrates the immunity of the instrument, device, or equipment to coupled fast transient disturbances, such as those caused by switching of inductive loads, relay contact bouncing, etc. Four test methods are presented in SAE J1113-12:
the capacitive coupling clamp (CCC) method
the direct capacitive coupling (DCC) method
the inductive coupling clamp (ICC) method
the capacitive/inductive coupling (CIC) method
History
| J1113/12_202209 | 2022-09-30 | Latest | Stabilized |
| J1113/12_201711 | 2017-11-08 | Historical | Revised |
| J1113/12_200608 | 2006-08-30 | Historical | Revised |
| J1113/12_200010 | 1991-12-01 | Historical | Revised |
| ISSUING COMMITTEE | Electromagnetic Compatibility (EMC) Standards |
|---|---|
| DATE | 2022-09-30 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 43 |
| PUBLISHER | SAE International |
| REVISED | STABILIZED |
