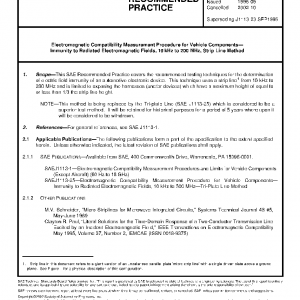

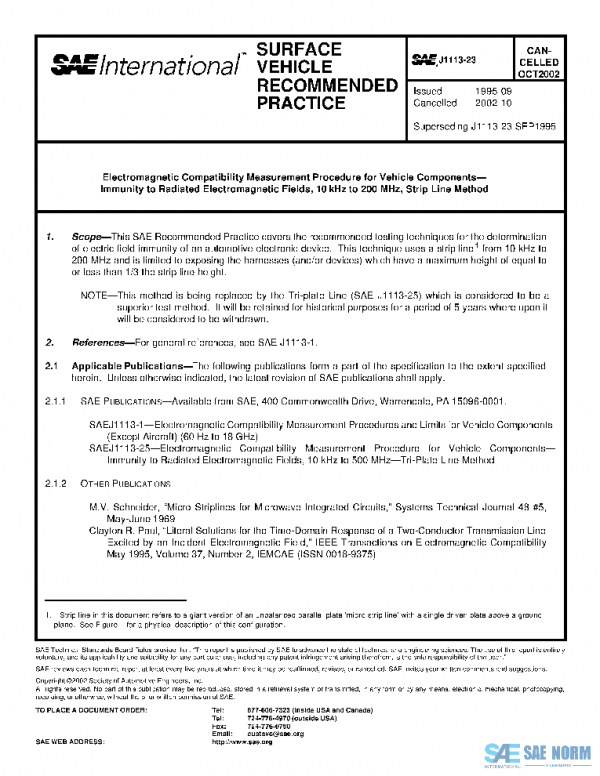

SAE J1113/23_200210 PDF
Original price was: $106.00.$60.42Current price is: $60.42.
Electromagnetic Compatibility Measurement Procedure for Vehicle Components – Immunity to Radiated Electromagnetic Fields, 10 Khz to 200 Mhz, Strip Line Method(Cancelled Oct 2002)
Description
This SAE Recommended Practice covers the recommended testing techniques for the determination of electric field immunity of an automotive electronic device. This technique uses a strip line{sup}1 from 10 kHz to 200 MHz and is limited to exposing the harnesses (and/or devices) which have a maximum height of equal to or less than 1/3 the strip line height.
When J1113-23 was released in 1995, a note was included in the scope regarding the expected life of the document which stated: “This method is being replaced by the Tri-plate Line (SAE J1113-25) which is considered to be a superior method. It will be retained for historical purposes for a period of five years where upon it will be considered to be withdrawn.”
The committee decided in August 2001 to ballot this document for cancellation.
History
| J1113/23_200210 | 2002-10-31 | Latest | Canceled |
| ISSUING COMMITTEE | Electromagnetic Compatibility (EMC) Standards |
|---|---|
| DATE | 2002-10-31 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 13 |
| PUBLISHER | SAE International |
| REVISED | CANCELLED |
Please select a variation to view its pdf.
