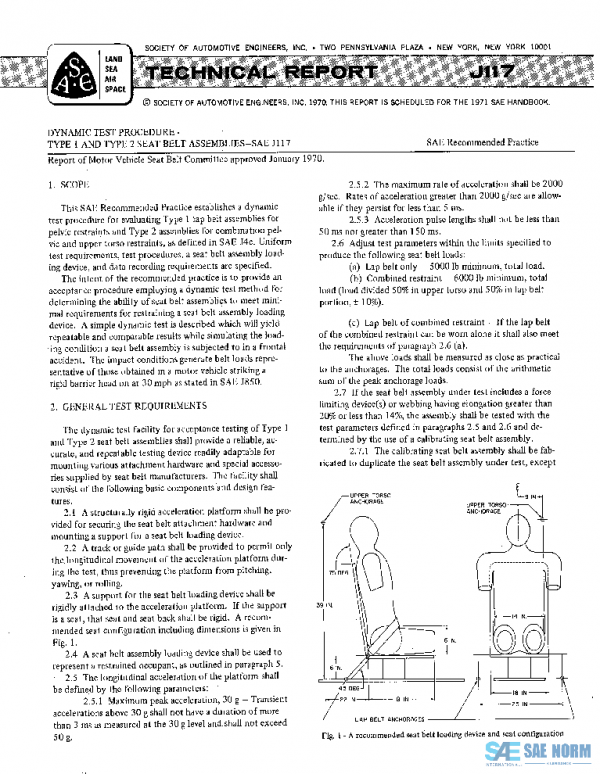

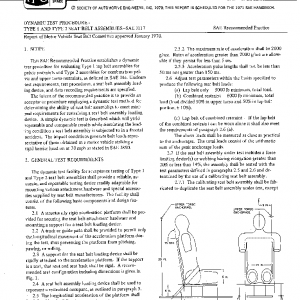

SAE J117_197001 PDF
Original price was: $50.00.$28.50Current price is: $28.50.
DYNAMIC TEST PROCEDURE – TYPE 1 AND TYPE 2 SEAT BELT ASSEMBLIES
Description
This SAE Recommended Practice establishes a dynamic test procedure for evaluating Type 1 lap belt assemblies for pelvic restraints and Type 2 assemblies for combination pelvic and upper torso restraints, as defined in SAE J4c. Uniform test requirements, test procedures, a seat belt assembly loading device, and data recording requirements are specified.
The intent of the recommended practice is to provide an acceptance procedure employing a dynamic test method for determining the ability of seat belt assemblies to meet minimal requirements for restraining a seat belt assembly loading device. A simple dynamic test is described which will yield repeatable and comparable results while simulating the loading condition a seat belt assembly is subjected to in a frontal accident. The impact conditions generate belt loads representative of those obtained in a motor vehicle striking a rigid barrier head on at 30 mph as stated in SAE J850.
History
| J117_198804 | 1993-06-01 | Latest | Canceled |
| J117_197001 | 1970-01-01 | Historical | Issued |
| ISSUING COMMITTEE | Motor Vehicle Council |
|---|---|
| DATE | 1970-01-01 |
| DOI | |
| ISCURRENT | |
| PAGE | 2 |
| PUBLISHER | SAE International |
| REVISED | ISSUED |
