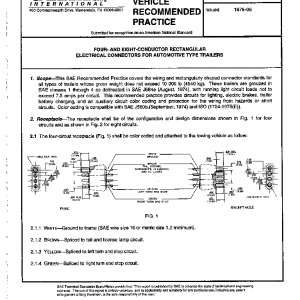

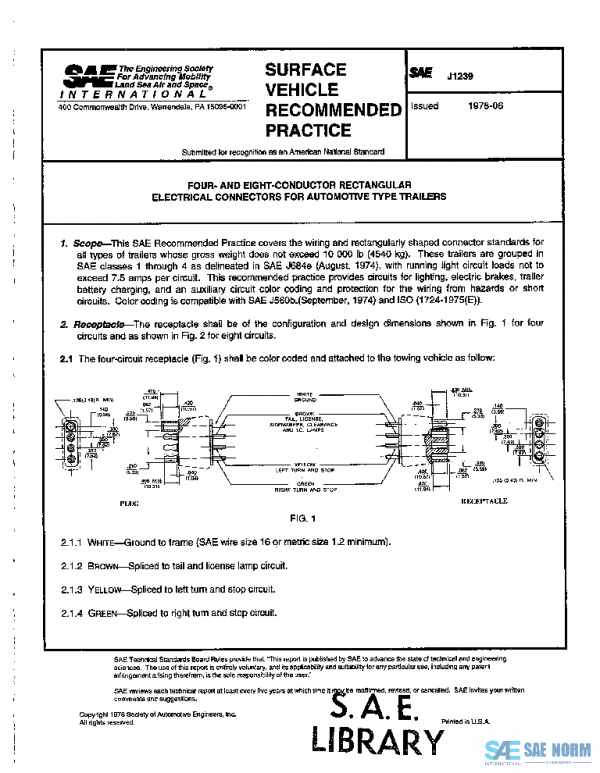

SAE J1239_197806 PDF
Original price was: $81.00.$46.17Current price is: $46.17.
FOUR- AND EIGHT-CONDUCTOR RECTANGULAR ELECTRICAL CONNECTORS FOR AUTOMOTIVE TYPE TRAILERS
Description
This SAE Recommended Practice covers the wiring and rectangularly shaped connector standards for all types of trailers whose gross weight does not exceed 10 000 lb (4540 kg). These trailers are grouped in SAE classes 1 through 4 as delineated in SAE J684e (August, 1974), with running light circuit loads not to exceed 7.5 amps per circuit. This recommended practice provides circuits for lighting, electric brakes, trailer battery charging, and an auxiliary circuit color coding and protection for the wiring from hazards or short circuits. Color coding is compatible with SAE J560b.(September, 1974) and ISO (1724-1975(E)).
History
| J1239_202302 | 2023-02-14 | Latest | Stabilized |
| J1239_201009 | 2010-09-07 | Historical | Revised |
| J1239_200302 | 2003-02-27 | Historical | Revised |
| J1239_199510 | 1995-10-01 | Historical | Revised |
| J1239_197806 | 1978-06-01 | Historical | Issued |
| ISSUING COMMITTEE | Connector Systems Standards Committee |
|---|---|
| DATE | 1978-06-01 |
| DOI | |
| ISCURRENT | |
| PAGE | 7 |
| PUBLISHER | SAE International |
| REVISED | ISSUED |
