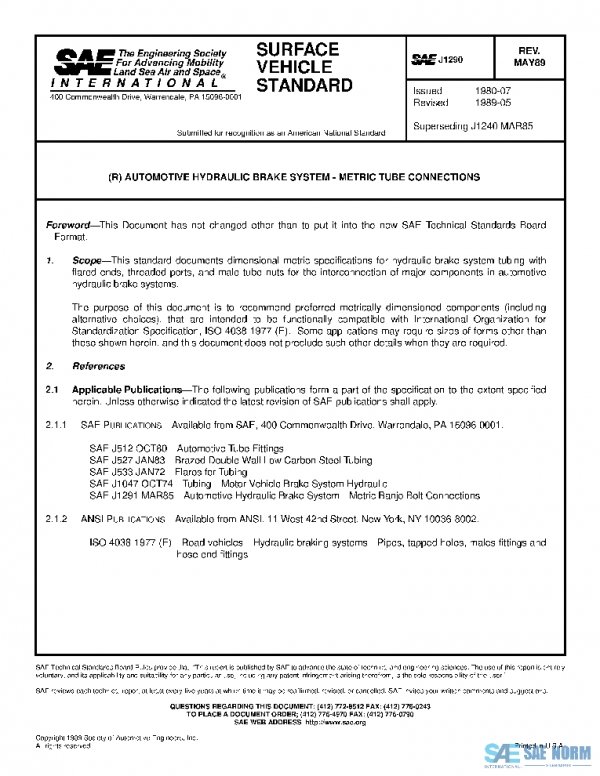

SAE J1290_198905 PDF
Original price was: $81.00.$46.17Current price is: $46.17.
AUTOMOTIVE HYDRAULIC BRAKE SYSTEM – METRIC TUBE CONNECTIONS
Description
This standard documents dimensional metric specifications for hydraulic brake system tubing with flared ends, threaded ports, and male tube nuts for the interconnection of major components in automotive hydraulic brake systems.
The purpose of this document is to recommend preferred metrically dimensioned components (including alternative choices), that are intended to be functionally compatible with International Organization for Standardization Specification, ISO 4038-1977 (E). Some applications may require sizes of forms other than those shown herein, and this document does not preclude such other details when they are required.
History
| J1290_201207 | 2012-07-05 | Latest | Reaffirmed |
| J1290_200210 | 2002-10-31 | Historical | Revised |
| J1290_198905 | 1989-05-01 | Historical | Revised |
| J1290_198007 | 1980-07-01 | Historical | Issued |
| ISSUING COMMITTEE | Hydraulic Brake Components Standards Committee |
|---|---|
| DATE | 1989-05-01 |
| DOI | |
| ISCURRENT | |
| PAGE | 7 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
