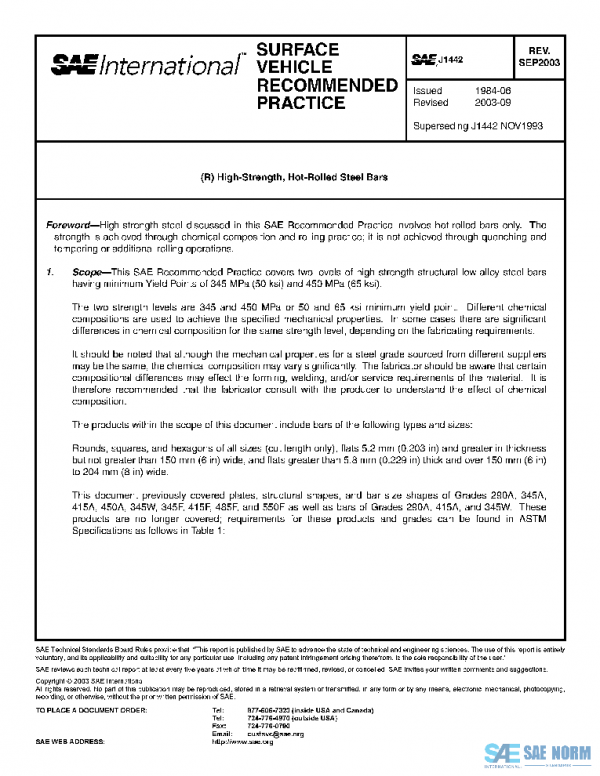

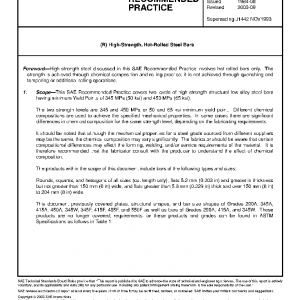

SAE J1442_200309 PDF

Description

This SAE Recommended Practice covers two levels of high strength structural low-alloy steel bars having minimum Yield Points of 345 MPa (50 ksi) and 450 MPa (65 ksi).
The two strength levels are 345 and 450 MPa or 50 and 65 ksi minimum yield point. Different chemical compositions are used to achieve the specified mechanical properties. In some cases there are significant differences in chemical composition for the same strength level, depending on the fabricating requirements.
It should be noted that although the mechanical properties for a steel grade sourced from different suppliers may be the same, the chemical composition may vary significantly. The fabricator should be aware that certain compositional differences may effect the forming, welding, and/or service requirements of the material. It is therefore recommended that the fabricator consult with the producer to understand the effect of chemical composition.
The products within the scope of this document include bars of the following types and sizes:
Rounds, squares, and hexagons of all sizes (cut length only), flats 5.2 mm (0.203 in) and greater in thickness but not greater than 150 mm (6 in) wide, and flats greater than 5.8 mm (0.229 in) thick and over 150 mm (6 in) to 204 mm (8 in) wide.
This document previously covered plates, structural shapes, and bar size shapes of Grades 290A, 345A, 415A, 450A, 345W, 345F, 415F, 485F, and 550F as well as bars of Grades 290A, 415A, and 345W. These products are no longer covered; requirements for these products and grades can be found in ASTM Specifications as follows in Table 1:

Product
Previous SAE Grade
ASTM Specification/Grade

Plates, Structural Shapes, Bar Size Shapes, Bars
290A
A 572/A 572M, Grade 42

Plates, Structural Shapes, Bar Size Shapes
345A
A 572/A 572M, Grade 50

Plates, Structural Shapes, Bar Size Shapes, Bars
415A
A 572/A 572M, Grade 60

Plates, Structural Shapes, Bar Size Shapes
450A
A 57/A 572M, Grade 65

Plates, Structural Shapes, Bar Size Shapes, Bars
345W
A 588/A 588M

Plates
345F
A 656/A 656M, Grade 50

Plates
415F
A 656/A 656M, Grade 60

Plates
485F
A 656/A 656M, Grade 70

Plates
550F
A 656/A 656M, Grade 80TABLE 1
EQUIVALENT ASTM SPECIFICATIONS

History

J1442_200309	2003-09-24	Latest	Revised
J1442_199311	1993-11-01	Historical	Revised
J1442_198812	1988-12-01	Historical	Reaffirmed
J1442_198406	1984-06-01	Historical	Issued
