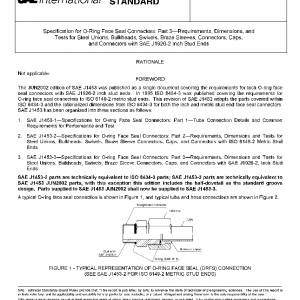

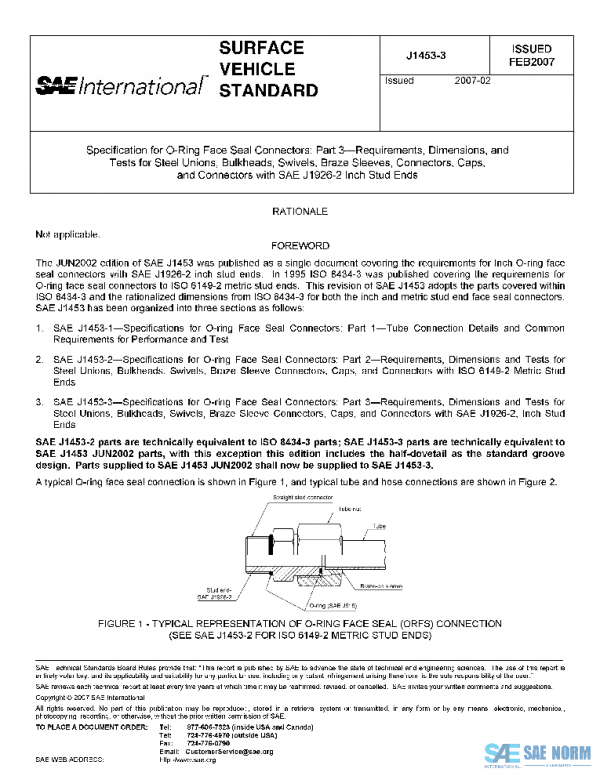

SAE J1453/3_200702 PDF
Original price was: $170.00.$96.90Current price is: $96.90.
Specification for O-Ring Face Seal Connectors: Part 3—Requirements, Dimensions, and Tests for Steel Unions, Bulkheads, Swivels, Braze Sleeves, Connectors, Caps, and Connectors with SAE J1926-2 Inch Stud Ends
Description
The three parts of SAE J1453 cover material, dimensional, and performance requirements of steel O-ring face seal (ORFS) connectors for tubing and the O-ring face seal interface and nut portion of hose stem assemblies for nominal tube diameters of 6 mm through 38 mm and for nominal hose diameters 6.3 mm through 38 mm. SAE J1453-3 covers the requirements for “inch based” O-ring face seal connectors to inch stud ends along with the associated adapters, bulkhead and union connectors. Inch hex wrenching flats are predominantly used throughout this standard.
History
| J1453/3_201206 | 2012-06-29 | Latest | Revised |
| J1453/3_200908 | 2009-08-21 | Historical | Revised |
| J1453/3_200702 | 2007-02-14 | Historical | Issued |
| ISSUING COMMITTEE | Hydraulic Tube Fittings Committee |
|---|---|
| DATE | 2007-02-14 |
| DOI | |
| PAGE | 70 |
| PUBLISHER | SAE International |
| REVISED | ISSUED |
Please select a variation to view its pdf.
