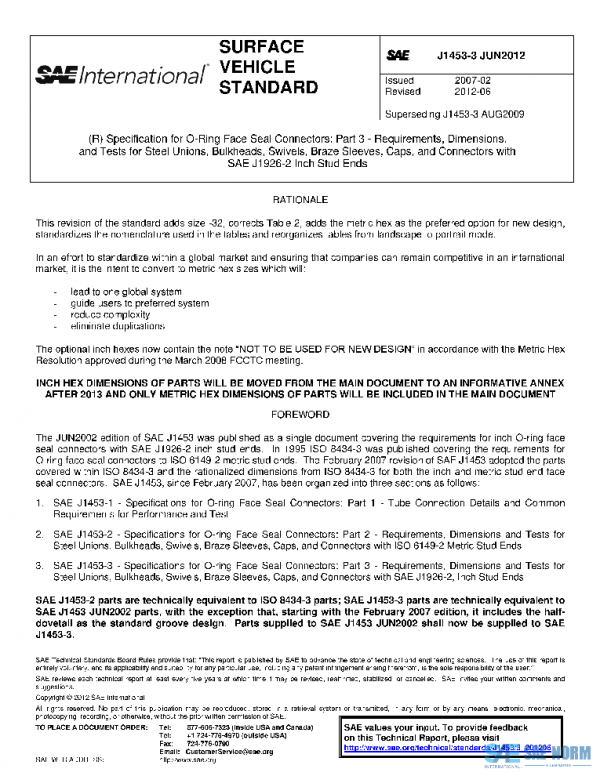

SAE J1453/3_201206 PDF
Original price was: $172.00.$98.04Current price is: $98.04.
Specification for O-Ring Face Seal Connectors: Part 3 – Requirements, Dimensions, and Tests for Steel Unions, Bulkheads, Swivels, Braze Sleeves, Caps, and Connectors with SAE J1926-2 Inch Stud Ends
Description
The three parts of SAE J1453 cover material, dimensional, and performance requirements of steel O-ring face seal (ORFS) connectors for tubing and the O-ring face seal interface and nut portion of hose stem assemblies for nominal tube diameters of 6 mm through 50 mm. SAE J1453-3 covers the requirements for O-ring face seal connectors to inch stud ends along with the associated adapters, bulkhead and union connectors. Inch hex dimensions of parts will be moved from the main document to an informative annex after 2013.
History
| J1453/3_201206 | 2012-06-29 | Latest | Revised |
| J1453/3_200908 | 2009-08-21 | Historical | Revised |
| J1453/3_200702 | 2007-02-14 | Historical | Issued |
| ISSUING COMMITTEE | Hydraulic Tube Fittings Committee |
|---|---|
| DATE | 2012-06-29 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 78 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
Please select a variation to view its pdf.
