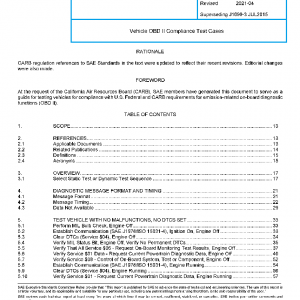

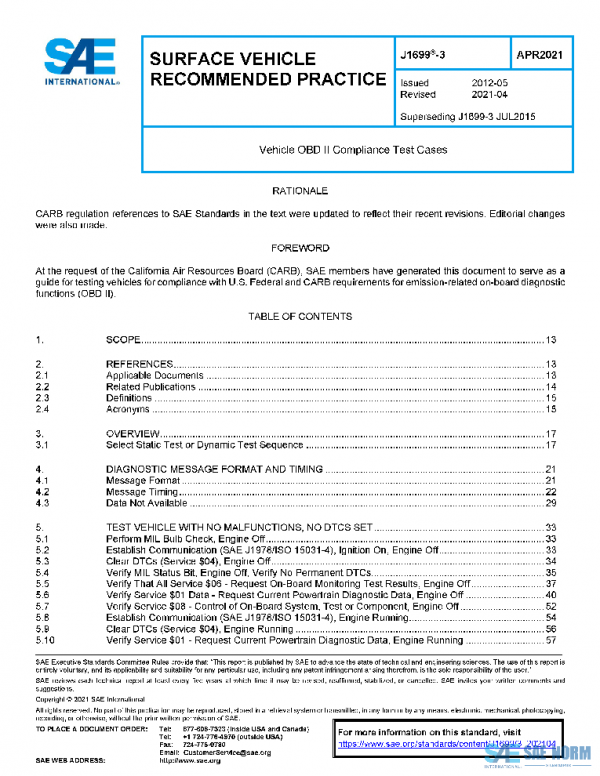

SAE J1699/3_202104 PDF
Original price was: $192.00.$109.44Current price is: $109.44.
Vehicle OBD II Compliance Test Cases
Description
The main purpose of this SAE Recommended Practice is to verify that vehicles are capable of communicating a minimum subset of information in accordance with the diagnostic test services specified in SAE J1979, or the equivalent document ISO 15031-5.
Any software meeting these specifications will utilize the vehicle interface that is defined in SAE J2534.
SAE J1699-3 tests shall be run using an SAE J2534-1 (API Version 04.04) Interface. However, the use of an SAE J2534-2 (API Version 04.04) Interface shall be permitted if the following conditions are met:
The number of 29-bit ISO 15765 OBD ECUs exceeds the capability of the SAE J2534-1 Interface.
The SAE J2534-2 Interface meets or exceeds all of the SAE J2534-1 requirements and also supports the SAE J2534-2 feature “Mixed Format Frames on a CAN Network.”
History
| J1699/3_202104 | 2021-04-28 | Latest | Revised |
| J1699/3_201707 | 2017-07-21 | Historical | Revised |
| J1699/3_201507 | 2015-07-28 | Historical | Revised |
| J1699/3_201205 | 2012-05-11 | Historical | Revised |
| J1699/3_200912 | 2009-12-03 | Historical | Revised |
| J1699/3_200605 | 2006-05-01 | Historical | Revised |
| J1699/3_200408 | 2004-08-30 | Historical | Issued |
| ISSUING COMMITTEE | Vehicle E E System Diagnostic Standards Committee |
|---|---|
| DATE | 2021-04-28 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 280 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
