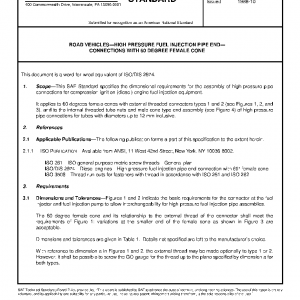

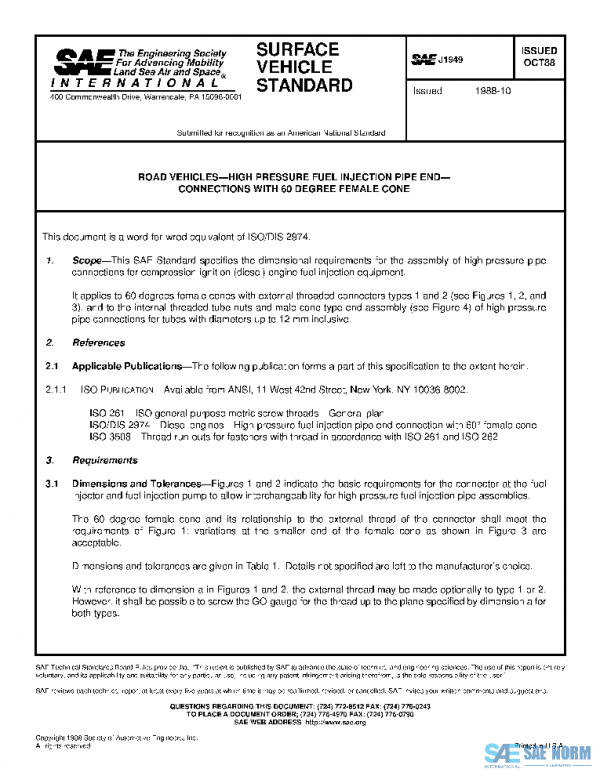

SAE J1949_198810 PDF
Original price was: $69.00.$39.33Current price is: $39.33.
ROAD VEHICLES—HIGH PRESSURE FUEL INJECTION PIPE END—CONNECTIONS WITH 60 DEGREE FEMALE CONE
Description
This SAE Standard specifies the dimensional requirements for the assembly of high-pressure pipe connections for compression-ignition (diesel) engine fuel injection equipment.
It applies to 60 degrees female cones with external threaded connectors types 1 and 2 (see Figures 1, 2, and 3), and to the internal threaded tube nuts and male cone type end assembly (see Figure 4) of high-pressure pipe connections for tubes with diameters up to 12 mm inclusive.
History
| J1949_201511 | 2015-11-24 | Latest | Canceled |
| J1949_198810 | 1988-10-01 | Historical | Issued |
| ISSUING COMMITTEE | Diesel Fuel Injection Equipment Standards Committee |
|---|---|
| DATE | 1988-10-01 |
| DOI | |
| ISCURRENT | |
| PAGE | 5 |
| PUBLISHER | SAE International |
| REVISED | ISSUED |
