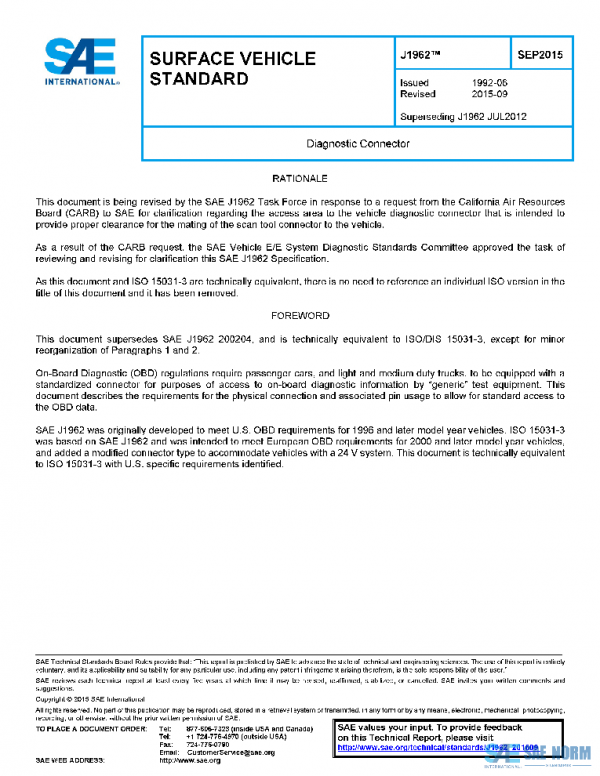

SAE J1962_201509 PDF
Original price was: $131.00.$74.67Current price is: $74.67.
Diagnostic Connector
Description
This document supersedes SAE J1962 200204, and is technically equivalent to ISO/DIS 15031-3: December 14, 2001.
This document is intended to satisfy the requirements of an OBD connector as required by U.S. On-Board Diagnostic (OBD) regulations. The diagnostic connection specified in this document consists of two mating connectors, the vehicle connector and the external test equipment connector.
This document specifies:
a
The functional requirements for the vehicle connector. These functional requirements are separated into four principal areas: connector location/access, connector design, connector contact allocation, and electrical requirements for connector and related electrical circuits,
b
The functional requirements for the external test equipment connector. These functional requirements are separated into three principal areas: connector design, connector contact allocation, and electrical requirements for connector and related electrical circuits.
History
| J1962_201607 | 2016-07-12 | Latest | Revised |
| J1962_201509 | 2015-09-11 | Historical | Revised |
| J1962_201207 | 2012-07-26 | Historical | Revised |
| J1962_200204 | 2002-04-30 | Historical | Revised |
| J1962_199802 | 1998-02-01 | Historical | Revised |
| J1962_199501 | 1995-01-01 | Historical | Revised |
| J1962_199406 | 1994-06-01 | Historical | Revised |
| J1962_199306 | 1993-06-01 | Historical | Revised |
| J1962_199206 | 1992-06-01 | Historical | Issued |
| ISSUING COMMITTEE | Vehicle E E System Diagnostic Standards Committee |
|---|---|
| DATE | 2015-09-11 |
| DOI | |
| ISCURRENT | |
| PAGE | 23 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
