SAE J1997_198910 PDF
Original price was: $129.00.$73.53Current price is: $73.53.

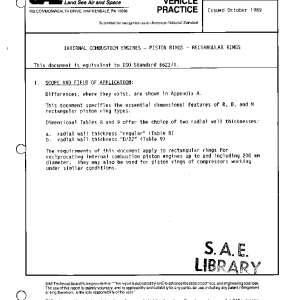

INTERNAL COMBUSTION ENGINES – PISTON RINGS – RECTANGULAR RINGS
Description
Differences, where they exist, are shown in Appendix A.
This document specifies the essential dimensional features of R, B, and M rectangular piston ring types.
Dimensional Tables 8 and 9 offer the choice of two radial wall thicknesses:
a
radial wall thickness “regular” (Table 8)
b
radial wall thickness “D/22” (Table 9)
The requirements of this document apply to rectangular rings for reciprocating internal combustion piston engines up to and including 200 mm diameter. They may also be used for piston rings of compressors working under similar conditions.
History
| J1997_200806 | 2008-06-30 | Latest | Canceled |
| J1997_199804 | 1998-04-01 | Historical | Reaffirmed |
| J1997_199210 | 1992-10-01 | Historical | Revised |
| J1997_198910 | 1989-10-01 | Historical | Issued |
| ISSUING COMMITTEE | Piston and Ring Standards Committee |
|---|---|
| DATE | 1989-10-01 |
| DOI | |
| ISCURRENT | |
| PAGE | 22 |
| PUBLISHER | SAE International |
| REVISED | ISSUED |
