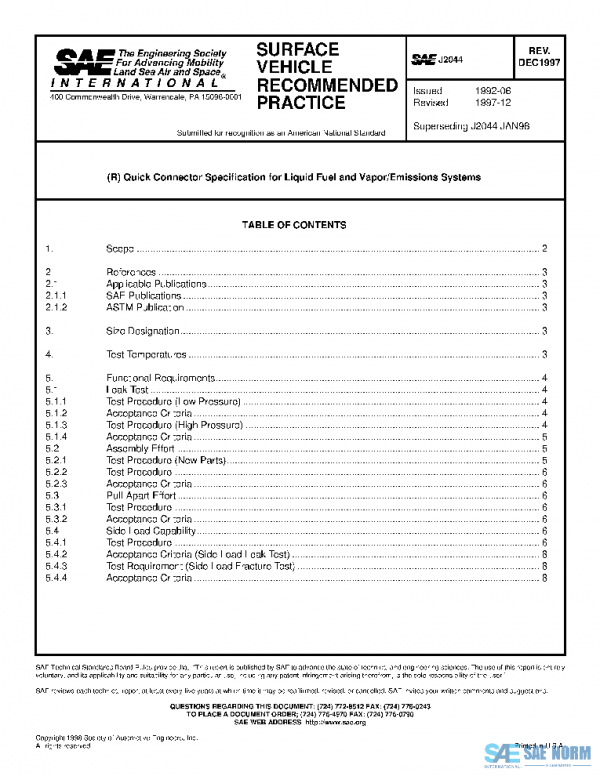

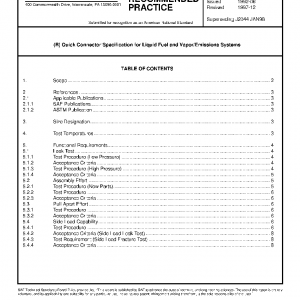

SAE J2044_199712 PDF
Original price was: $125.00.$71.25Current price is: $71.25.
Quick Connector Specification for Liquid Fuel and Vapor/Emissions Systems
Description
This SAE Recommended Practice defines the minimum functional requirements for quick connectors used in supply, return, and vapor/emissions lines for flexible-tubing systems. This document applies to automotive and light truck gasoline and diesel fuel systems with operating pressure or vacuum up to 500 kPa, 5 bar, (72 psig) and operating temperatures up to 115 °C (239 °F). These tests apply to new connectors in assembly operations. Connectors must be pushed onto a mating tube end then pulled back to assure complete connection. For service operations, the mating tube should be lubricated with SAE 30 weight oil before re-connecting.
Vehicle OEM fuel system specifications may impose additional requirements beyond the scope of this general SAE document. In those cases, the OEM specification takes precedence over this document.
History
| J2044_202505 | 2025-05-05 | Latest | Reaffirmed |
| J2044_200908 | 2009-08-13 | Historical | Revised |
| J2044_200209 | 2002-09-13 | Historical | Revised |
| J2044_199712 | 1997-12-01 | Historical | Revised |
| J2044_199601 | 1996-01-01 | Historical | Revised |
| J2044_199206 | 1992-06-01 | Historical | Issued |
| ISSUING COMMITTEE | Fuel Systems Standards Committee |
|---|---|
| DATE | 1997-12-01 |
| DOI | |
| ISCURRENT | |
| PAGE | 20 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
