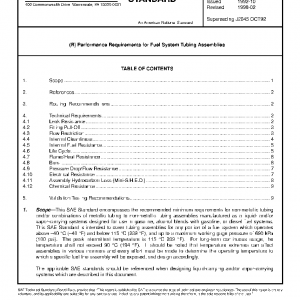

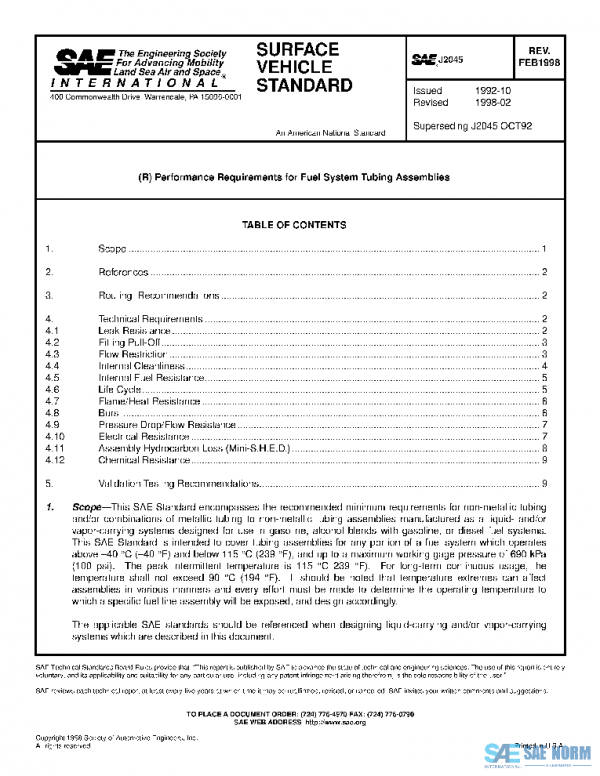

SAE J2045_199802 PDF
Original price was: $106.00.$60.42Current price is: $60.42.
Performance Requirements for Fuel System Tubing Assemblies
Description
This SAE Standard encompasses the recommended minimum requirements for non-metallic tubing and/or combinations of metallic tubing to non-metallic tubing assemblies manufactured as a liquid- and/or vapor-carrying systems designed for use in gasoline, alcohol blends with gasoline, or diesel fuel systems. This SAE Standard is intended to cover tubing assemblies for any portion of a fuel system which operates above –40 °C (–40 °F) and below 115 °C (239 °F), and up to a maximum working gage pressure of 690 kPa (100 psi). The peak intermittent temperature is 115 °C 239 °F). For long-term continuous usage, the temperature shall not exceed 90 °C (194 °F). It should be noted that temperature extremes can affect assemblies in various manners and every effort must be made to determine the operating temperature to which a specific fuel line assembly will be exposed, and design accordingly.
The applicable SAE standards should be referenced when designing liquid-carrying and/or vapor-carrying systems which are described in this document.
Wherever possible or unless stated otherwise, systems tested to this document shall be in the final design intent configuration.
History
| J2045_202411 | 2024-11-22 | Latest | Reaffirmed |
| J2045_201211 | 2012-11-01 | Historical | Revised |
| J2045_199802 | 1998-02-01 | Historical | Revised |
| J2045_199210 | 1992-10-01 | Historical | Issued |
| ISSUING COMMITTEE | Fuel Systems Standards Committee |
|---|---|
| DATE | 1998-02-01 |
| DOI | |
| ISCURRENT | |
| PAGE | 13 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
