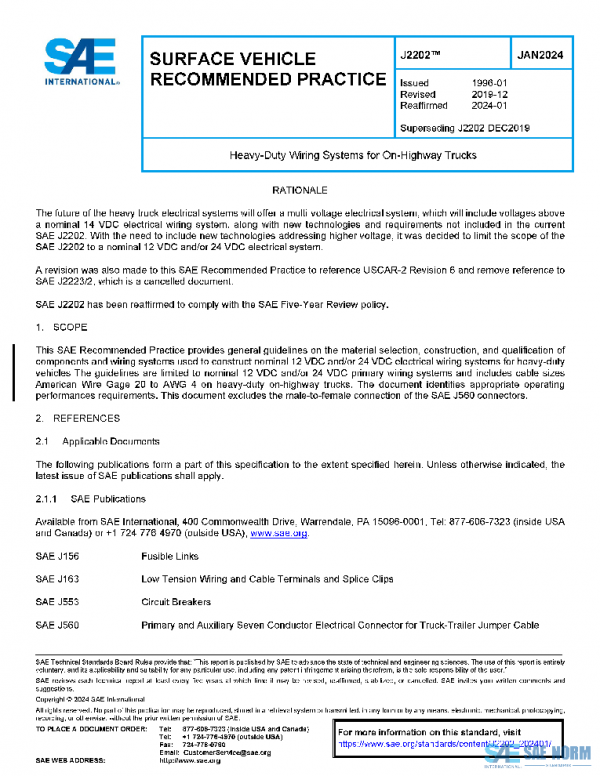

SAE J2202_202401 PDF
Original price was: $121.00.$68.97Current price is: $68.97.
Heavy-Duty Wiring Systems for On-Highway Trucks
Description
This SAE Recommended Practice provides general guidelines on the material selection, construction, and qualification of components and wiring systems used to construct nominal 12 VDC and/or 24 VDC electrical wiring systems for heavy-duty vehicles The guidelines are limited to nominal 12 VDC and/or 24 VDC primary wiring systems and includes cable sizes American Wire Gage 20 to AWG 4 on heavy-duty on-highway trucks. The document identifies appropriate operating performances requirements. This document excludes the male-to-female connection of the SAE J560 connectors.
History
| J2202_202401 | 2024-01-09 | Latest | Reaffirmed |
| J2202_201912 | 2019-12-03 | Historical | Revised |
| J2202_201604 | 2016-04-06 | Historical | Revised |
| J2202_200405 | 2004-05-10 | Historical | Revised |
| J2202_199601 | 1996-01-01 | Historical | Issued |
| ISSUING COMMITTEE | Truck and Bus Electrical Systems Committee |
|---|---|
| DATE | 2024-01-09 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 18 |
| PUBLISHER | SAE International |
| REVISED | REAFFIRMED |
