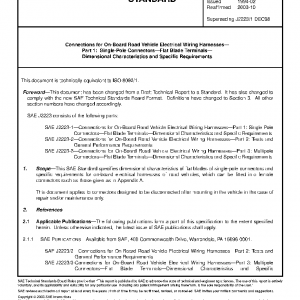

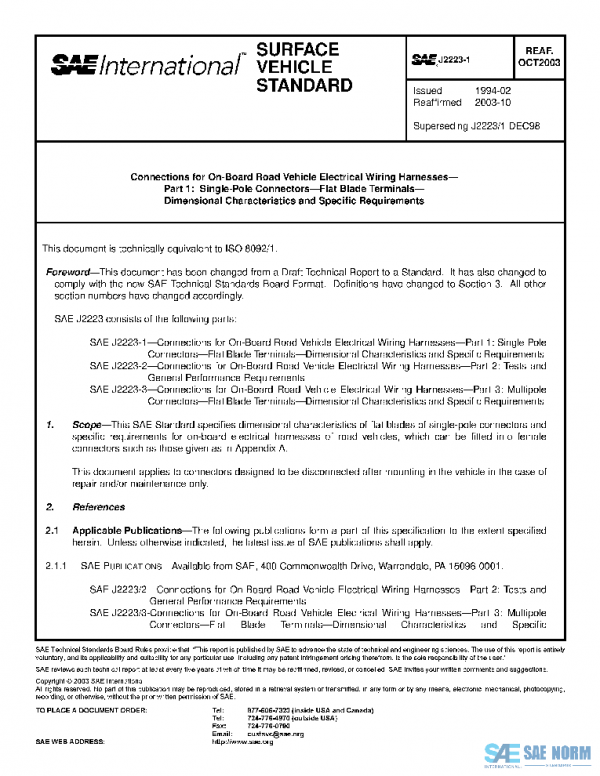

SAE J2223/1_200310 PDF
Original price was: $81.00.$46.17Current price is: $46.17.
Connections for On-Board Road Vehicle Electrical Wiring Harnesses—Part 1: Single-Pole Connectors—Flat Blade Terminals—Dimensional Characteristics and Specific Requirements
Description
This SAE Standard specifies dimensional characteristics of flat blades of single-pole connectors and specific requirements for on-board electrical harnesses of road vehicles, which can be fitted into female connectors such as those given as in Appendix A.
This document applies to connectors designed to be disconnected after mounting in the vehicle in the case of repair and/or maintenance only.
History
| J2223/1_201112 | 2011-12-20 | Latest | Stabilized |
| J2223/1_200511 | 2005-11-16 | Historical | Revised |
| J2223/1_200310 | 2003-10-28 | Historical | Reaffirmed |
| J2223/1_199812 | 1998-12-01 | Historical | Revised |
| J2223/1_199402 | 1994-02-01 | Historical | Revised |
| ISSUING COMMITTEE | Electrical Distribution Steering Committee |
|---|---|
| DATE | 2003-10-28 |
| DOI | |
| PAGE | 7 |
| PUBLISHER | SAE International |
| REVISED | REAFFIRMED |
