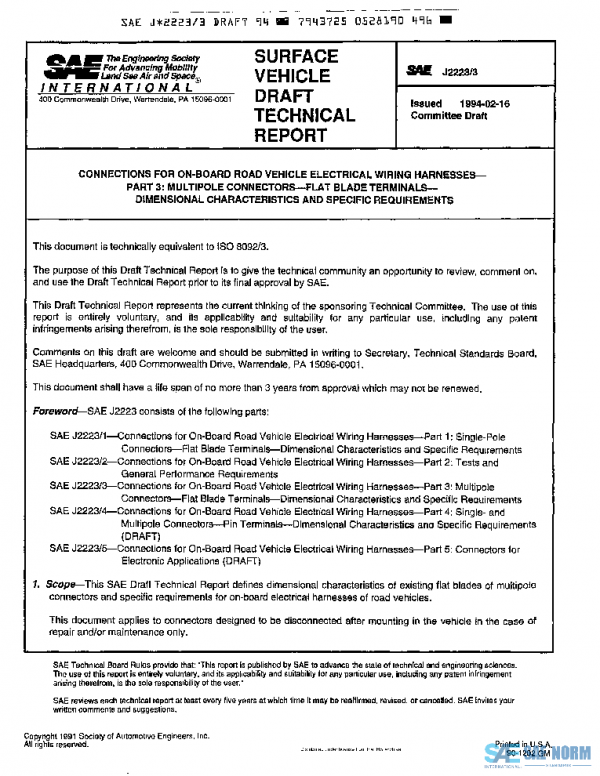

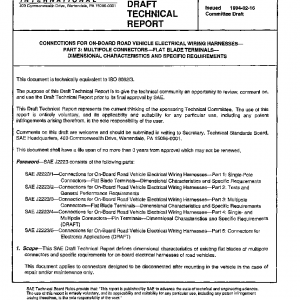

SAE J2223/3_199402 PDF
Original price was: $69.00.$39.33Current price is: $39.33.
CONNECTIONS FOR ON-BOARD ROAD VEHICLE ELECTRICAL WIRING HARNESSES—PART 3: MULTIPOLE CONNECTORS—FLAT BLADE TERMINALS—DIMENSIONAL CHARACTERISTICS AND SPECIFIC REQUIREMENTS
Description
This SAE Draft Technical Report defines dimensional characteristics of existing flat blades of multipole connectors and specific requirements for on-board electrical harnesses of road vehicles.
This document applies to connectors designed to be disconnected after mounting in the vehicle in the case of repair and/or maintenance only.
History
| J2223/3_201112 | 2011-12-20 | Latest | Stabilized |
| J2223/3_200605 | 2006-05-23 | Historical | Revised |
| J2223/3_200310 | 2003-10-28 | Historical | Reaffirmed |
| J2223/3_199812 | 1998-12-01 | Historical | Revised |
| J2223/3_199402 | 1994-02-01 | Historical | Issued |
| ISSUING COMMITTEE | Electrical Distribution Steering Committee |
|---|---|
| DATE | 1994-02-01 |
| DOI | |
| PAGE | 5 |
| PUBLISHER | SAE International |
| REVISED | ISSUED |
