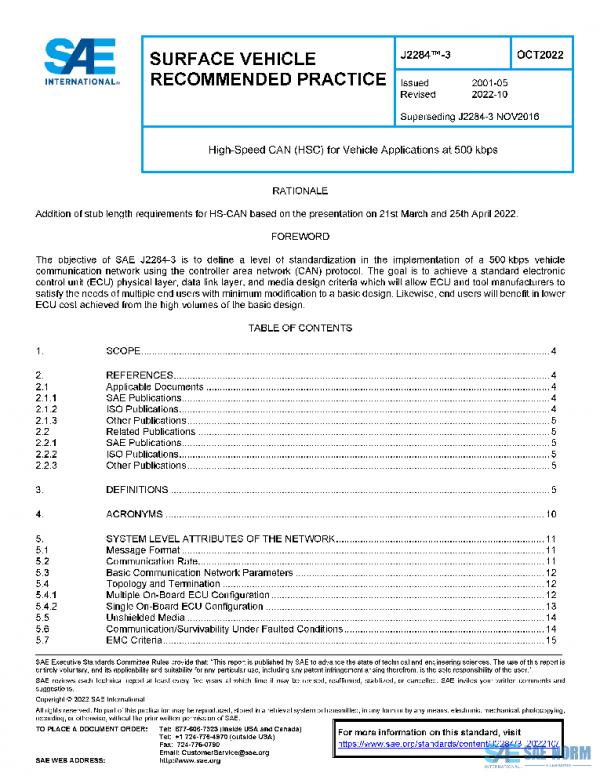

SAE J2284/3_202210 PDF

Description

This SAE Recommended Practice will define the physical layer and portions of the data link layer of the open systems interconnection model (ISO 7498) for a 500 kbps high-speed CAN (HSC) protocol implementation. Both electronic control unit (ECU) and media design requirements for networks will be specified. Requirements will primarily address the controller area network (CAN) physical layer implementation.
Requirements will focus on a minimum standard level of performance from the HSC implementation. All ECUs and media shall be designed to meet certain component level requirements in order to ensure the HSC implementation system level performance at 500 kbps. The minimum performance level shall be specified by system level performance requirements or characteristics described in detail in Section 5 of this document.
This document is designed such that if the ECU requirements defined in Section 6 are met, then the system level attributes should be obtainable.
This document will address only requirements which may be tested at the ECU and media level. No requirements which apply to the testing of the HSC implementation as integrated into a vehicle are contained in this document. However, compliance with all ECU and media requirements will increase the possibility of communication compatibility between separately procured components and will greatly simplify the task of successfully integrating a HSC communication system in a vehicle.

History
