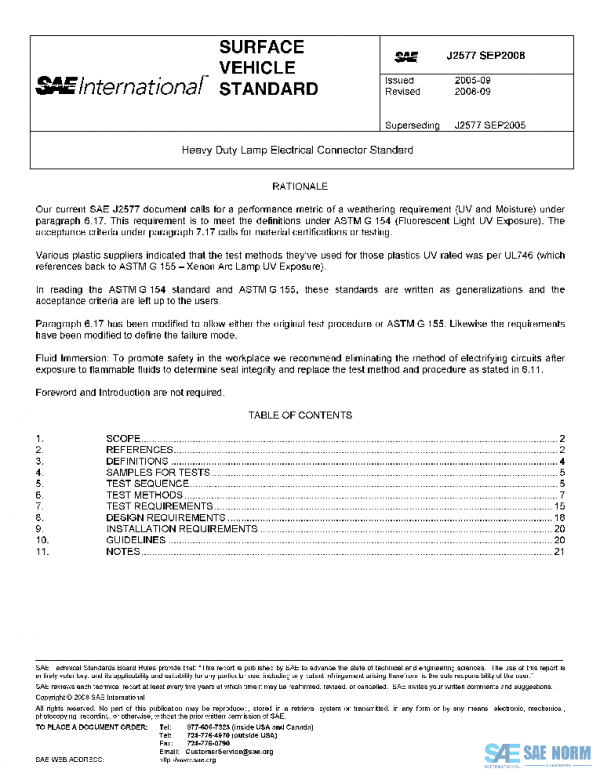

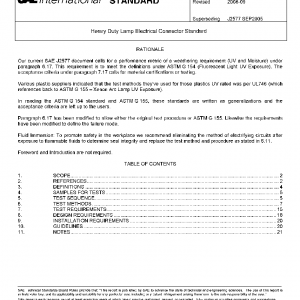

SAE J2577_200809 PDF
Original price was: $127.00.$72.39Current price is: $72.39.
Heavy Duty Lamp Electrical Connector Standard
Description
This SAE Standard encompasses connectors that form the electrical interface(s) between the heavy duty lighting device(s) and the truck and truck/trailer wiring harness system. This document provides design and performance requirements based upon the mechanical, electrical and environmental conditions and covers applications of connectors for direct current electrical systems of 24 V nominal or less in heavy-duty signaling and marking devices. This standard excludes forward lighting devices (i.e. fog lamps) but includes the following list of lamps:
Stop Lamps
Tail Lamps
Turn Signal/Hazard Warning Lamps
Side Marker Lamps
Clearance Lamps
Identification Lamps
Back Up Lamps
Side-Turn Signal Lamps
Work Lamps
License Lamps
Chassis Component Status (ABS) Lamps
History
| J2577_201509 | 2015-09-22 | Latest | Stabilized |
| J2577_201007 | 2010-07-07 | Historical | Revised |
| J2577_200809 | 2008-09-04 | Historical | Revised |
| J2577_200509 | 2005-09-07 | Historical | Issued |
| ISSUING COMMITTEE | Heavy Duty Lighting Standards Committee |
|---|---|
| DATE | 2008-09-04 |
| DOI | |
| ISCURRENT | |
| PAGE | 21 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
