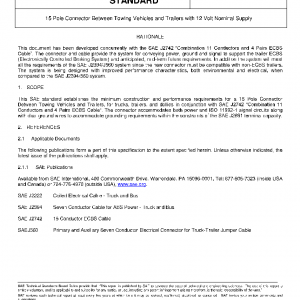

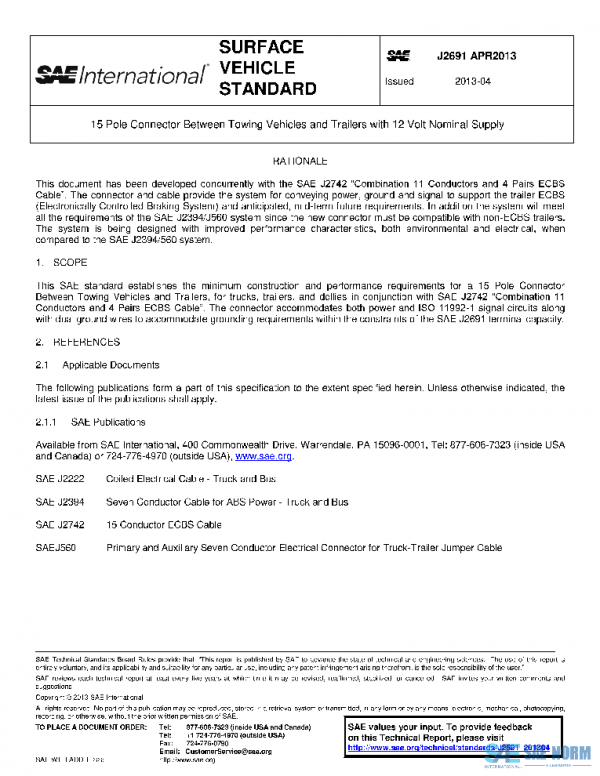

SAE J2691_201304 PDF
Original price was: $86.00.$49.02Current price is: $49.02.
15 Pole Connector Between Towing Vehicles and Trailers with 12 Volt Nominal Supply
Description
This SAE standard establishes the minimum construction and performance requirements for a 15 Pole Connector Between Towing Vehicles and Trailers, for trucks, trailers, and dollies in conjunction with SAE J2742 “Combination 11 Conductors and 4 Pairs ECBS Cable”. The connector accommodates both power and ISO 11992-1 signal circuits along with dual ground wires to accommodate grounding requirements within the constraints of the SAE J2691 terminal capacity.
History
| J2691_202507 | 2025-07-21 | Latest | Stabilized |
| J2691_202002 | 2020-02-25 | Historical | Revised |
| J2691_201804 | 2018-04-15 | Historical | Revised |
| J2691_201304 | 2013-04-09 | Historical | Issued |
| ISSUING COMMITTEE | Truck and Bus Electrical Systems Committee |
|---|---|
| DATE | 2013-04-09 |
| DOI | |
| ISCURRENT | |
| PAGE | 8 |
| PUBLISHER | SAE International |
| REVISED | ISSUED |
