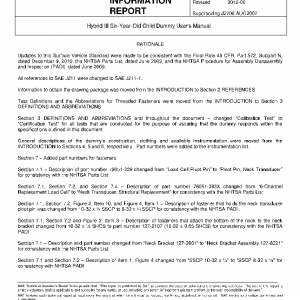

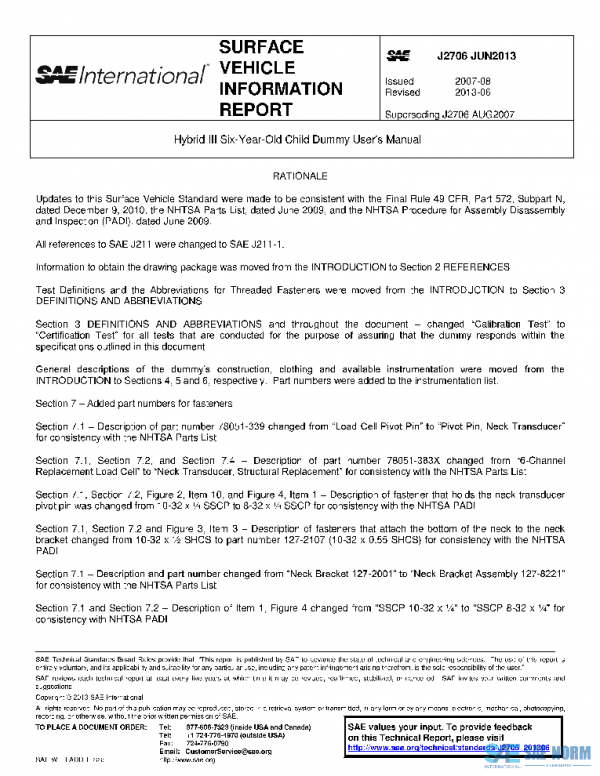

SAE J2706_201306 PDF
Original price was: $163.00.$92.91Current price is: $92.91.
Hybrid III Six-Year-Old Child Dummy User’s Manual
Description
This user’s manual covers the Hybrid III 6-year-old child test dummy, including changes specified in 49 CFR Part 572, Subpart N in the final rule dated December 9, 2010. It is intended for technicians who work with this device. It covers the construction and clothing, disassembly and reassembly, available instrumentation, external dimensions and segment masses, as well as certification and inspection test procedures. Appendix A contains guidelines for safe handling of instrumented dummies. Appendix B contains instructions for repairing dummy flesh. Appendix C includes procedures for adjusting the joints throughout the dummy.
History
| J2706_202307 | 2023-07-06 | Latest | Stabilized |
| J2706_201306 | 2013-06-19 | Historical | Revised |
| J2706_200708 | 2007-08-21 | Historical | Issued |
| ISSUING COMMITTEE | Dummy Testing and Equipment Committee |
|---|---|
| DATE | 2013-06-19 |
| DOI | |
| ISCURRENT | |
| PAGE | 55 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
