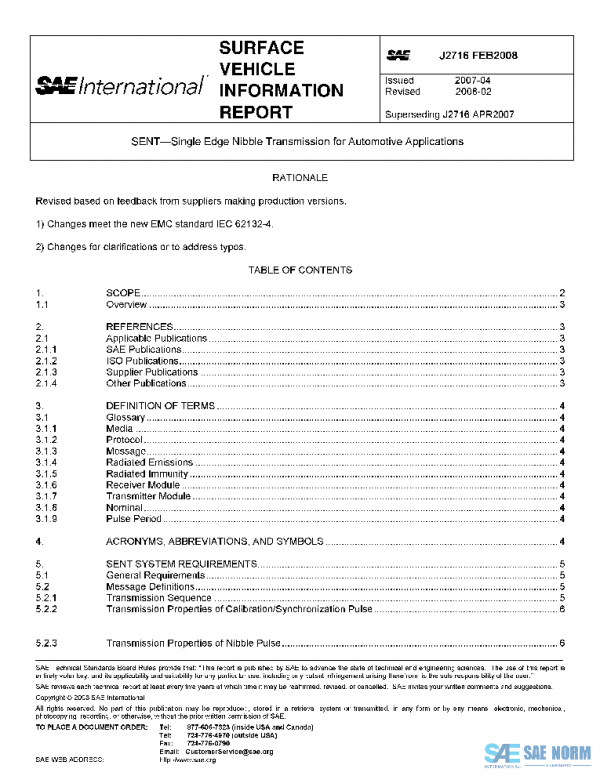

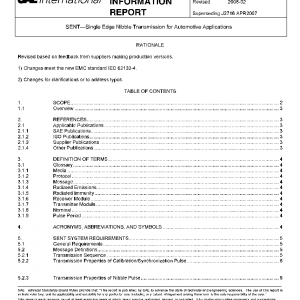

SAE J2716_200802 PDF

Description

This document defines a level of standardization in the implementation of the digital pulse scheme for reporting sensor information via Single Edge Nibble Transmission (SENT) encoding. This standard will allow ECU and tool manufacturers to satisfy the needs of multiple end users with minimum modifications to the basic design. This standard will benefit vehicle Original Equipment Manufacturers (OEMs) by achieving lower ECU costs due to higher industry volumes of the basic design.
Requirements stated in this document provide a minimum standard level of performance to which all compatible ECUs and media shall be designed. This assures data communication among all connected devices regardless of supplier.
The intended audience includes, but is not limited to, ECU suppliers, sensor suppliers, component release engineers and vehicle system engineers.
