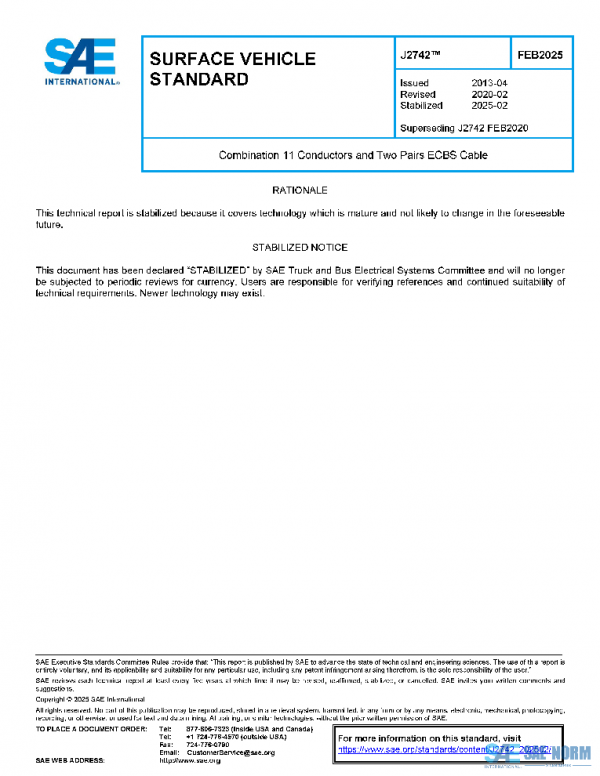

SAE J2742_202502 PDF
Original price was: $99.00.$56.43Current price is: $56.43.
Combination 11 Conductors and Two Pairs ECBS Cable(STABILIZED Feb 2025)
Description
This SAE standard establishes the minimum construction and performance requirements for a combination cable consisting of 11 conductors and two twisted pairs for use on trucks, trailers, and dollies for 12 VDC nominal applications in conjunction with SAE J2691 (15 pole connectors.) The cable includes both power and unjacketed SAE J1939-15 paired signal circuits along with dual ground wires to accommodate grounding requirements within the constraints of the SAE J2691 terminal capacity.
History
| J2742_202502 | 2025-02-25 | Latest | Stabilized |
| J2742_202002 | 2020-02-24 | Historical | Revised |
| J2742_201806 | 2018-06-03 | Historical | Revised |
| J2742_201304 | 2013-04-09 | Historical | Issued |
| ISSUING COMMITTEE | Truck and Bus Electrical Systems Committee |
|---|---|
| DATE | 2025-02-25 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 11 |
| PUBLISHER | SAE International |
| REVISED | STABILIZED |
