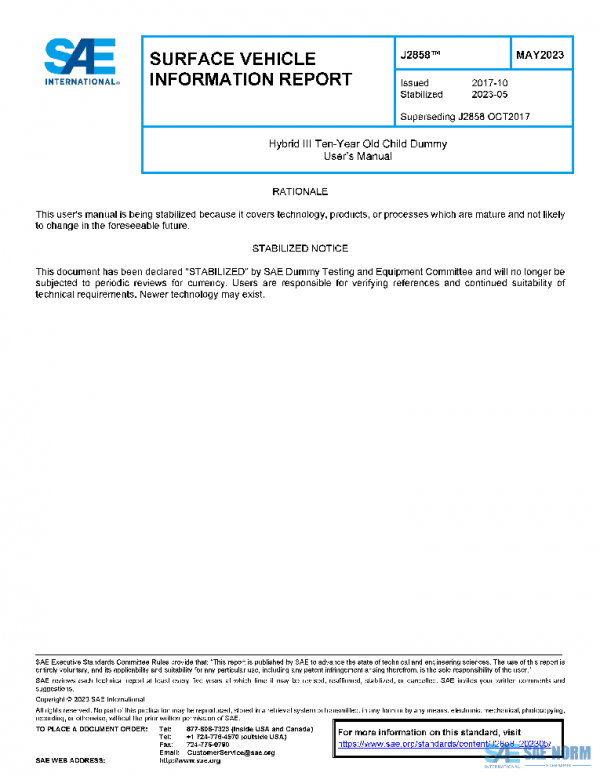

SAE J2858_202305 PDF
Original price was: $159.00.$90.63Current price is: $90.63.
Hybrid III Ten-Year Old Child Dummy User’s Manual(STABILIZED May 2023)
Description
This user’s manual covers the Hybrid III 10-year old child test dummy. The manual is intended for use by technicians who work with this test device. It covers the construction and clothing, assembly and disassembly, available instrumentation, external dimensions and segment masses, as well as certification and inspection test procedures. It includes guidelines for handling accelerometers, guidelines for flesh repair, and joint adjustment procedures. Finally, it includes drawings for some of the test equipment that is unique to this dummy.
History
| J2858_202305 | 2023-05-01 | Latest | Stabilized |
| J2858_201710 | 2017-10-11 | Historical | Issued |
| ISSUING COMMITTEE | Dummy Testing and Equipment Committee |
|---|---|
| DATE | 2023-05-01 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 48 |
| PUBLISHER | SAE International |
| REVISED | STABILIZED |
Please select a variation to view its pdf.
Reviews
There are no reviews yet.
