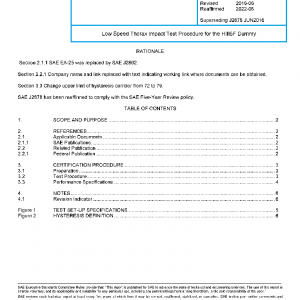

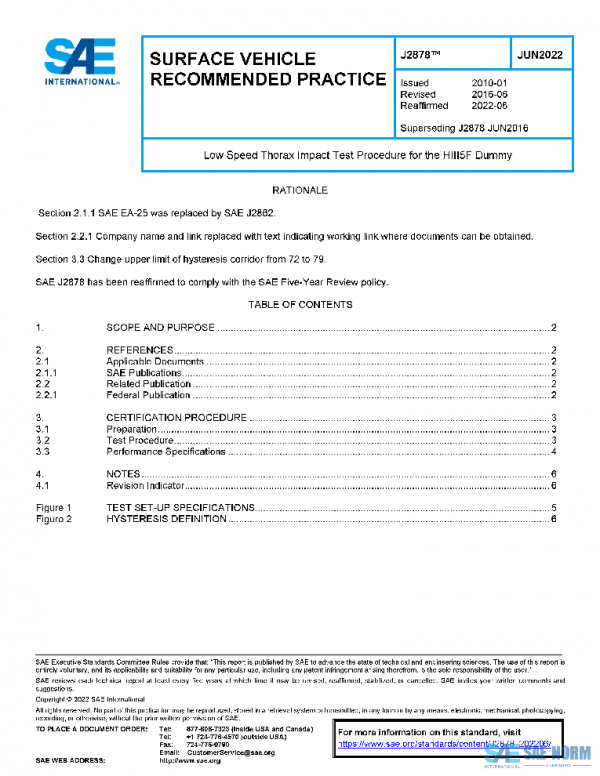

SAE J2878_202206 PDF
Original price was: $75.00.$42.75Current price is: $42.75.
Low Speed Thorax Impact Test Procedure for the HIII5F Dummy
Description
This procedure establishes a recommended practice for performing a Low Speed Thorax Impact Test to the Hybrid III Small Female Anthropomorphic Test Device (ATD or crash dummy). This test was created to satisfy the demand by the industry to have a certification test which results in peak chest deflection similar to current full vehicle, frontal impact tests. An inherent problem exists with the current certification procedure because the normal (6.7 m/s) thorax impact test has test results for peak chest deflection that are greater than those currently seen in full vehicle, frontal tests.
The intent of this document is to develop a low speed thorax certification procedure for the H-III5F dummy with a 3.0 m/s impact similar to the SAE J2779 procedure for the H-III50M dummy.
History
| J2878_202206 | 2022-06-09 | Latest | Reaffirmed |
| J2878_201606 | 2016-06-28 | Historical | Revised |
| J2878_201001 | 2010-01-13 | Historical | Issued |
| ISSUING COMMITTEE | Dummy Testing and Equipment Committee |
|---|---|
| DATE | 2022-06-09 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 6 |
| PUBLISHER | SAE International |
| REVISED | REAFFIRMED |
