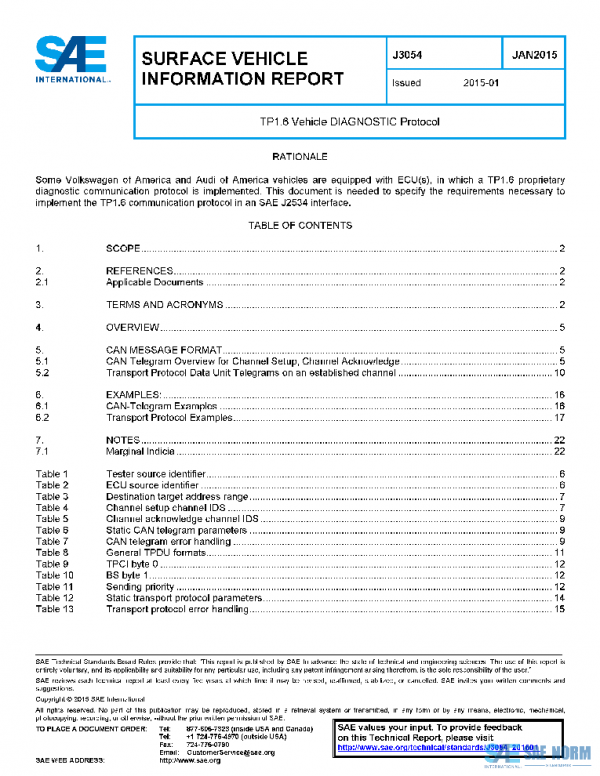

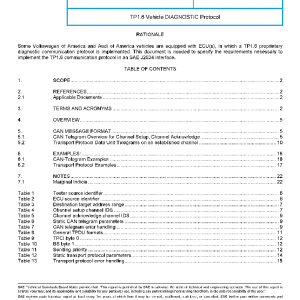

SAE J3054_201501 PDF
Original price was: $129.00.$73.53Current price is: $73.53.
TP1.6 Vehicle DIAGNOSTIC Protocol
Description
This Technical Information Report defines the diagnostic communication protocol TP1.6. This document should be used in conjunction with SAE J2534-2 in order to fully implement the communication protocol in an SAE J2534 interface.
Some Volkswagen of America and Audi of America vehicles are equipped with ECU(s), in which a TP1.6 proprietary diagnostic communication protocol is implemented. The purpose of this document is to specify the requirements necessary to implement the communication protocol in an SAE J2534 interface.
This Technical Information Report describes how a tester can be connected to a vehicle to perform diagnostics using the TP1.6 protocol. Details regarding ECU to ECU communication have been left out.
History
| J3054_202205 | 2022-05-02 | Latest | Revised |
| J3054_201501 | 2015-01-15 | Historical | Issued |
| ISSUING COMMITTEE | Vehicle E E System Diagnostic Standards Committee |
|---|---|
| DATE | 2015-01-15 |
| DOI | |
| ISCURRENT | |
| PAGE | 22 |
| PUBLISHER | SAE International |
| REVISED | ISSUED |
