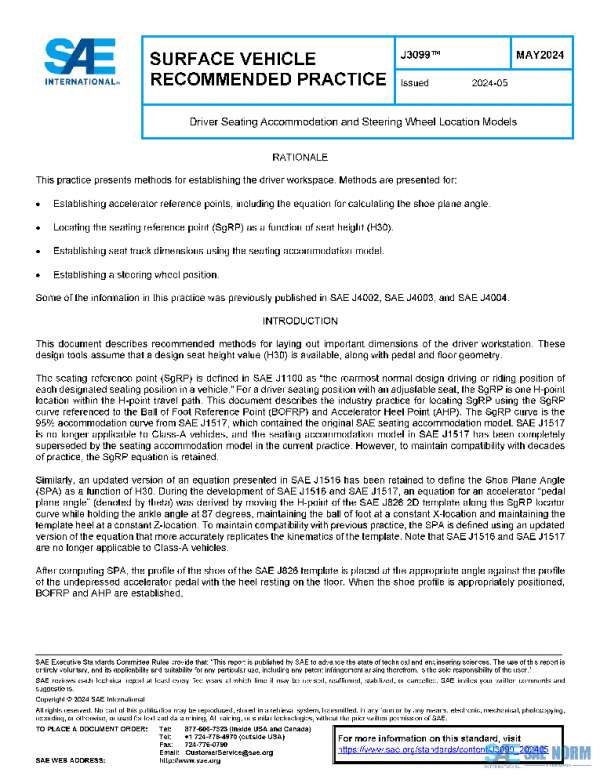

SAE J3099_202405 PDF
Original price was: $118.00.$67.26Current price is: $67.26.
Driver Seating Accommodation and Steering Wheel Location Models
Description
This practice presents methods for establishing the driver workspace. Methods are presented for:
Establishing accelerator reference points, including the equation for calculating the shoe plane angle.
Locating the SgRP as a function of seat height (H30).
Establishing seat track dimensions using the seating accommodation model.
Establishing a steering wheel position.
Application of this document is limited to Class-A Vehicles (Passenger Cars, Multipurpose Passenger Vehicles, and Light Trucks) as defined in SAE J1100.
History
| J3099_202504 | 2025-04-14 | Latest | Revised |
| J3099_202405 | 2024-05-24 | Historical | Issued |
| ISSUING COMMITTEE | Human Accom and Design Devices Stds Comm |
|---|---|
| DATE | 2024-05-24 |
| DOI | |
| ISCURRENT | |
| PAGE | 17 |
| PUBLISHER | SAE International |
| REVISED | ISSUED |
