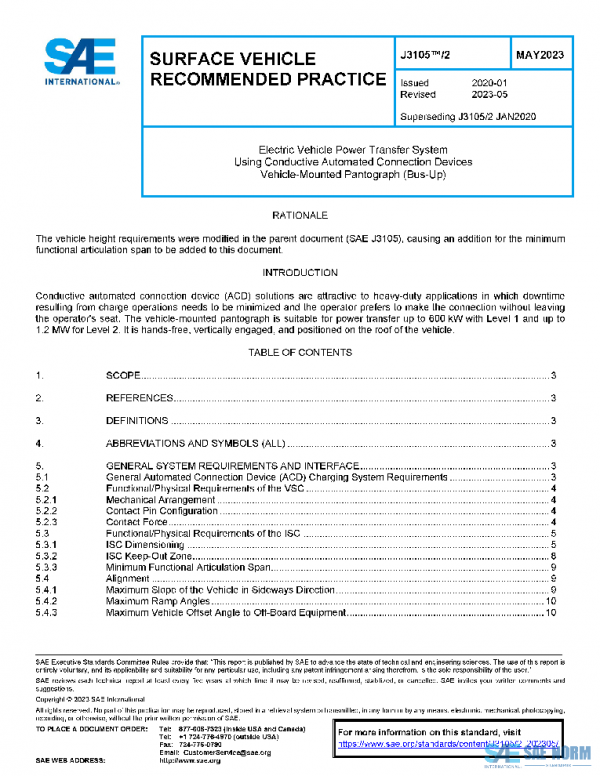

SAE J3105/2_202305 PDF
Original price was: $99.00.$56.43Current price is: $56.43.
Electric Vehicle Power Transfer System Using Conductive Automated Connection Devices Vehicle-Mounted Pantograph (Bus-Up)
Description
This document details one of the connections of the SAE J3105 document. The connections are referenced in the scope of the main document SAE J3105. SAE J3105/2 details the vehicle-mounted pantograph, or the bus-up connection. All the common requirements are defined in the main document; the current document provides the details of the connection.
This document covers the connection interface relevant requirements for an electric vehicle power transfer system using a conductive automated charging device based on a conventional rail vehicle pantograph design. To allow interoperability for on-road vehicles (in particular, buses and coaches), one configuration is described in this document. Other configurations may be used for non-standard applications (for example, mining trucks or port vehicles).
History
| J3105/2_202305 | 2023-05-05 | Latest | Revised |
| J3105/2_202001 | 2020-01-20 | Historical | Issued |
| ISSUING COMMITTEE | Hybrid – EV Committee |
|---|---|
| DATE | 2023-05-05 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 11 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
