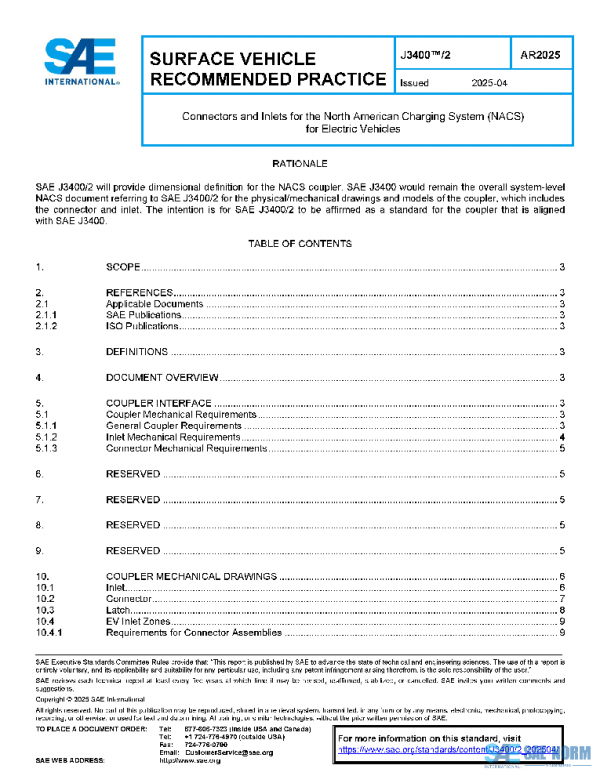

SAE J3400/2_202504 PDF
Original price was: $340.00.$193.80Current price is: $193.80.
Connectors and Inlets for the North American Charging System (NACS) for Electric Vehicles
Description
This document covers the dimensional definition of the SAE J3400 (NACS) electric vehicle coupler, which includes the connector and inlet.
History
| J3400/2_202505 | 2025-05-27 | Latest | Revised |
| J3400/2_202504 | 2025-04-03 | Historical | Issued |
| ISSUING COMMITTEE | Hybrid – EV Committee |
|---|---|
| DATE | 2025-04-03 |
| DOI | |
| PAGE | SAE J3400/2 will provide dimensional definition for the NACS coupler. SAE J3400 would remain the overall system-level NACS document referring to SAE J3400/2 for the physical/mechanical drawings and models of the coupler, which includes the connector and inlet. The intention is for SAE J3400/2 to be affirmed as a standard for the coupler that is aligned with SAE J3400. |
| PUBLISHER | SAE International |
| REVISED | ISSUED |
