REFRIGERATION TUBE FITTINGS
Description

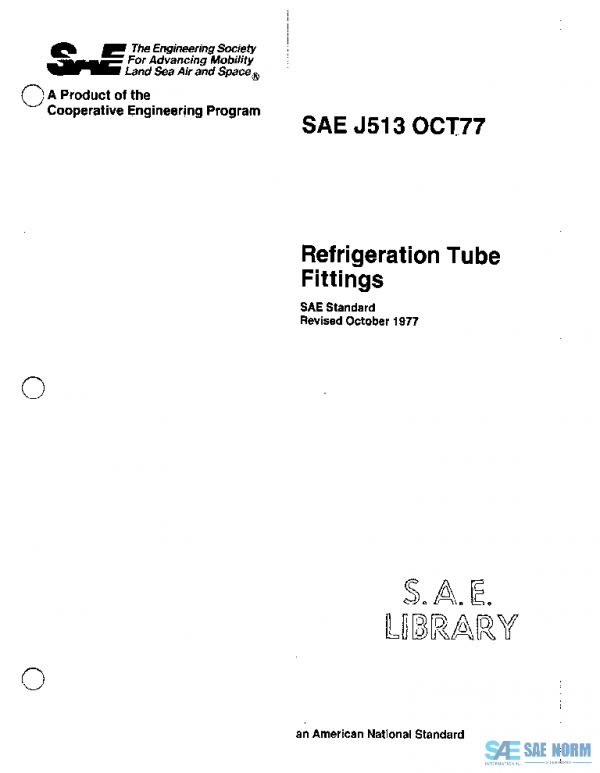

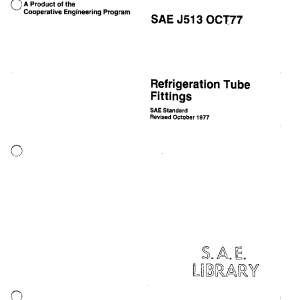

This standard covers complete general and dimensional specifications for refrigeration tube fittings of the flare type specified in Figs. 1-42 and Tables 1-16. These fittings are intended for general use with flared annealed copper tubing in refrigeration applications.
Dimensions of single and double 45 deg flares on tubing to be used in conjunction with these fittings are given in Fig. 2 and Table 1 of SAE J533.
The following general specifications supplement the dimensional data contained in Tables 1-16 with respect to all unspecified details.
History
| J513_202507 | 2025-07-01 | Latest | Stabilized |
| J513_201912 | 2019-12-19 | Historical | Reaffirmed |
| J513_199901 | 1999-01-05 | Historical | Revised |
| J513_199702 | 1997-02-01 | Historical | Revised |
| J513_199606 | 1996-06-01 | Historical | Revised |
| J513_199405 | 1994-05-01 | Historical | Revised |
| J513_199306 | 1993-06-01 | Historical | Revised |
| J513_199006 | 1990-06-01 | Historical | Revised |
| J513_197710 | 1977-10-01 | Historical | Revised |
| J513F_197710 | 1977-10-01 | Historical | Revised |
| J513C_196805 | 1968-05-01 | Historical | Revised |
| ISSUING COMMITTEE | Air Brake Tubing and Tube Ftg Committee |
|---|---|
| DATE | 1977-10-01 |
| DOI | |
| ISCURRENT | |
| PAGE | 29 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
