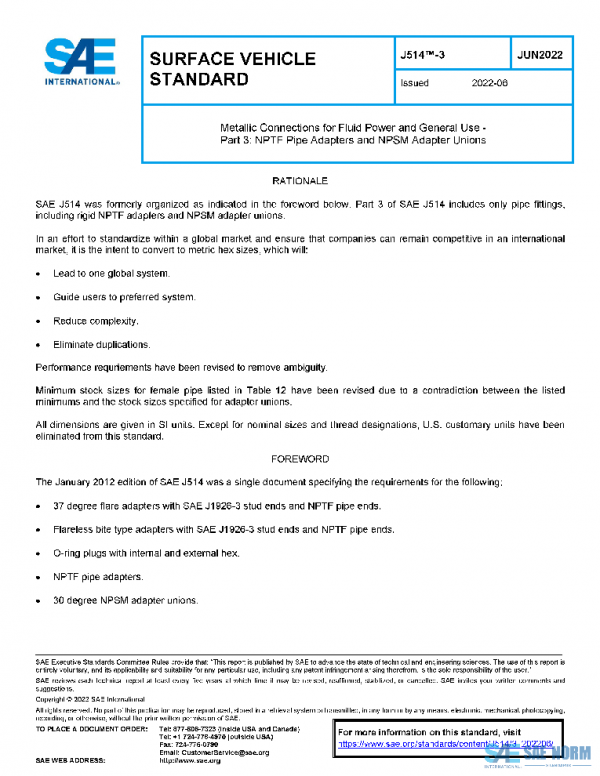

SAE J514/3_202206 PDF
Original price was: $135.00.$76.95Current price is: $76.95.
Metallic Connections for Fluid Power and General Use – Part 3: NPTF Pipe Adapters and NPSM Adapter Unions
Description
This part of SAE J514 covers general and dimensional specifications for NPTF pipe adapters and 30 degree NPSM adapter unions. These fittings are intended for general application in hydraulic systems on industrial equipment and commercial products.
These fittings are capable of providing leak-proof, full-flow connections in hydraulic systems operating at working pressures as specified in Table 6. Since many factors influence the pressure at which a hydraulic system will or will not perform satisfactorily, the values shown in Table 6 should not be construed as a guaranteed minimum.
For any application, it is recommended that sufficient testing be conducted and reviewed by both the user and fitting manufacturer to assure that performance levels will be safe and satisfactory.
History
| J514/3_202312 | 2023-12-13 | Latest | Revised |
| J514/3_202206 | 2022-06-09 | Historical | Issued |
| ISSUING COMMITTEE | Hydraulic Tube Fittings Committee |
|---|---|
| DATE | 2022-06-09 |
| DOI | |
| PAGE | 25 |
| PUBLISHER | SAE International |
| REVISED | ISSUED |
